Basic Specifications
Principle
Reciprocating Compressor
Application
Room Temperature Control
Performance
Low Noise, Variable Frequency, Explosion-Proof
Lubrication Style
Lubricated
Condenser
Copper Pipe and Fins
Voltage
380V/3p/50Hz 440V/3p/60Hz
❄️

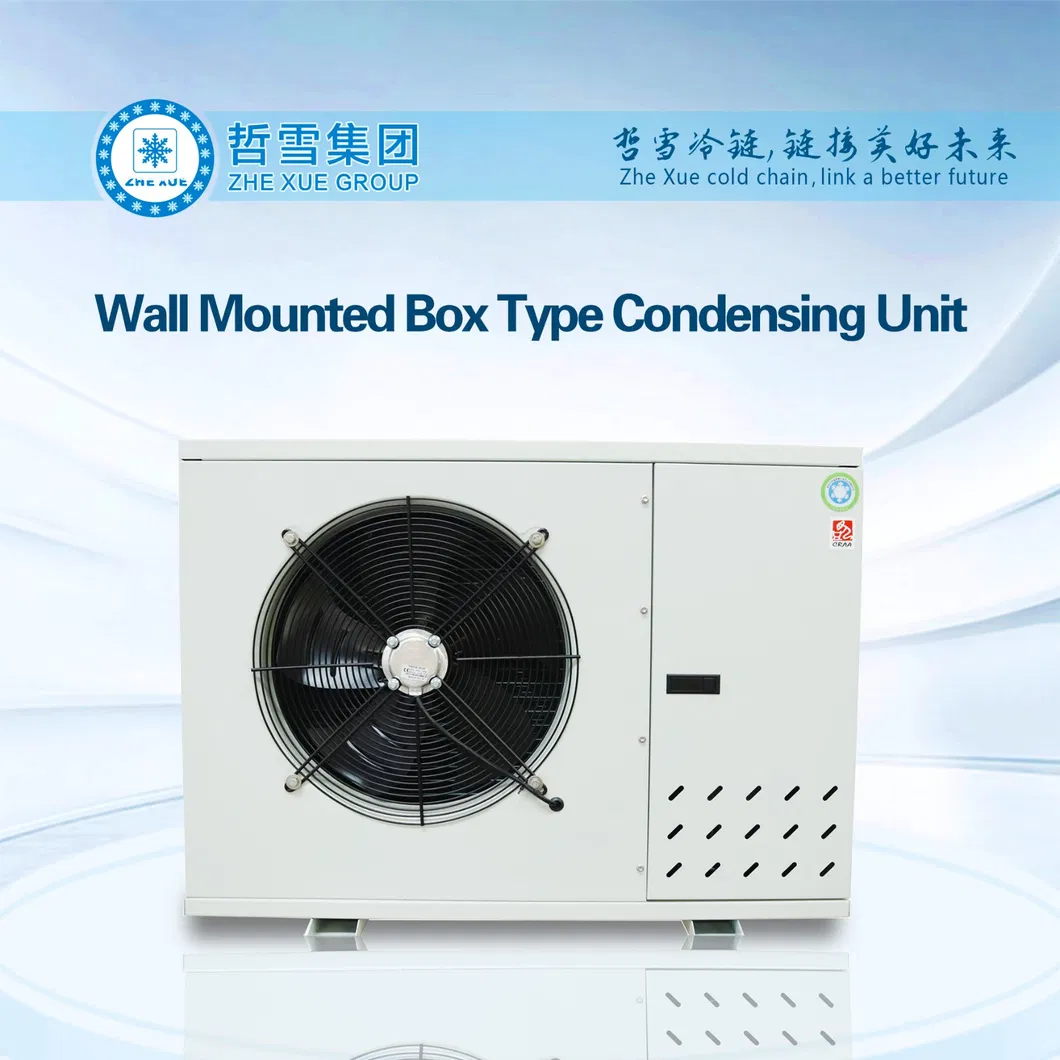

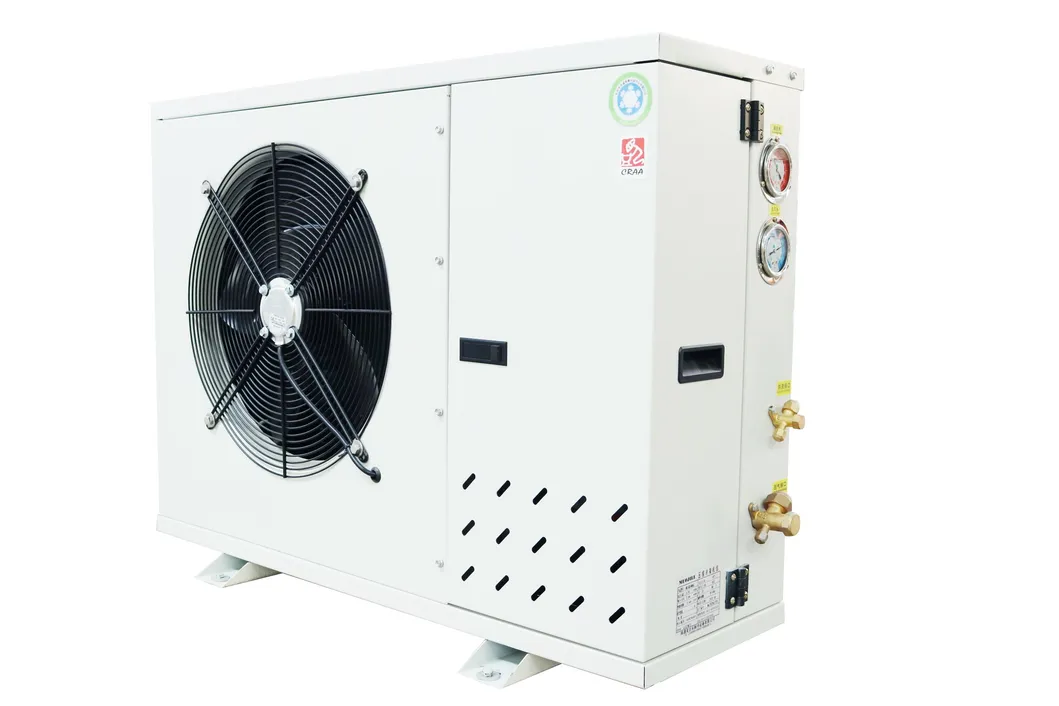

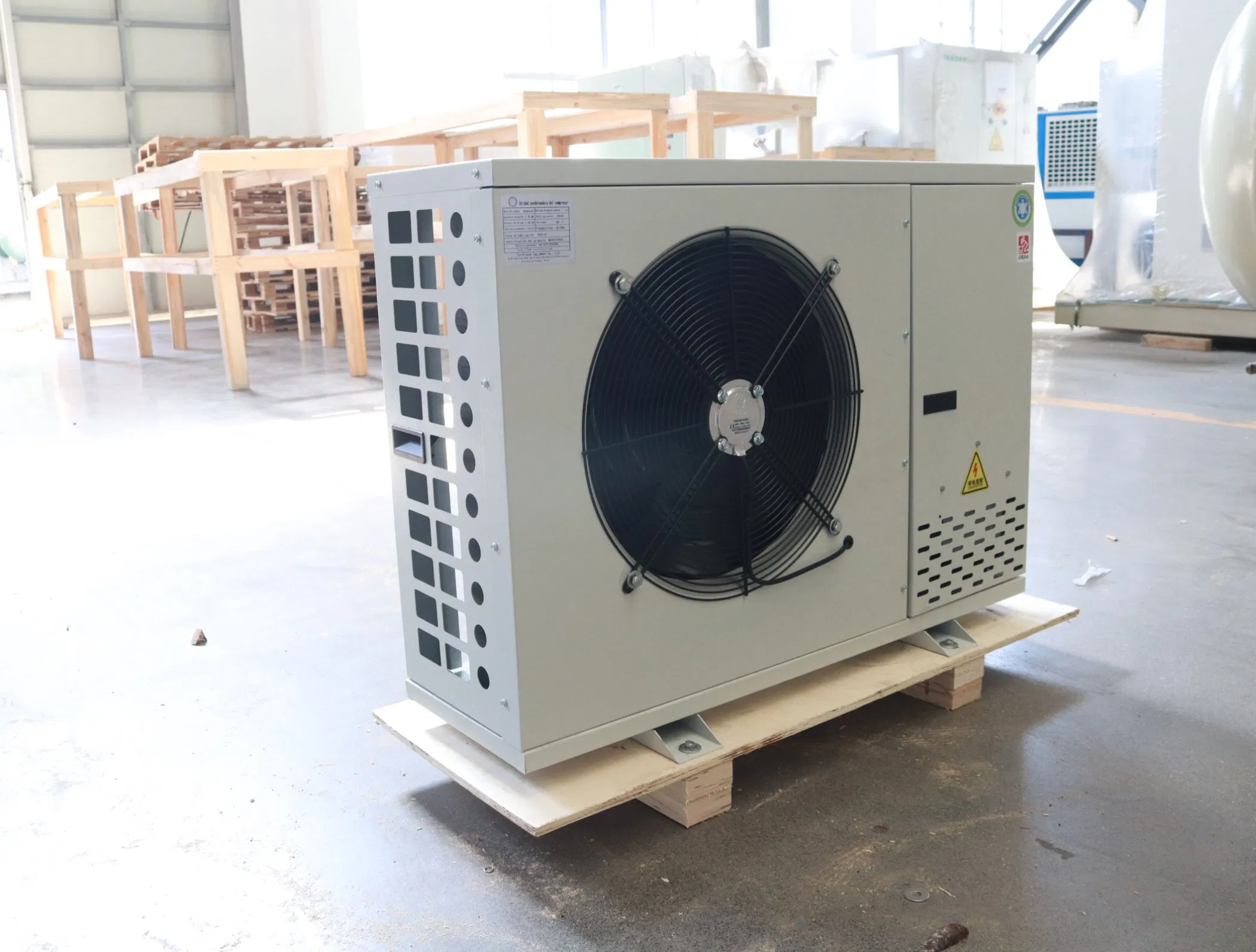

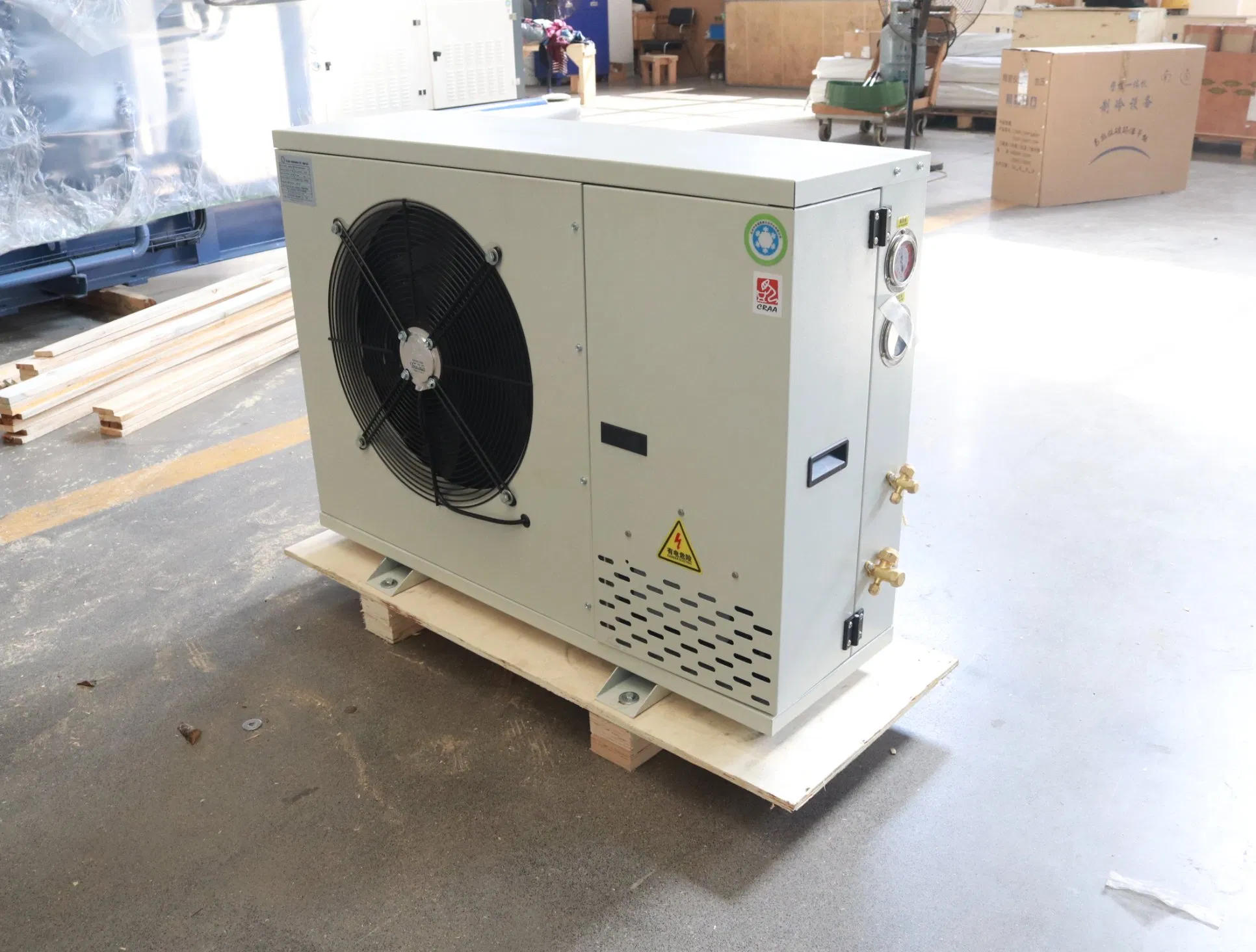

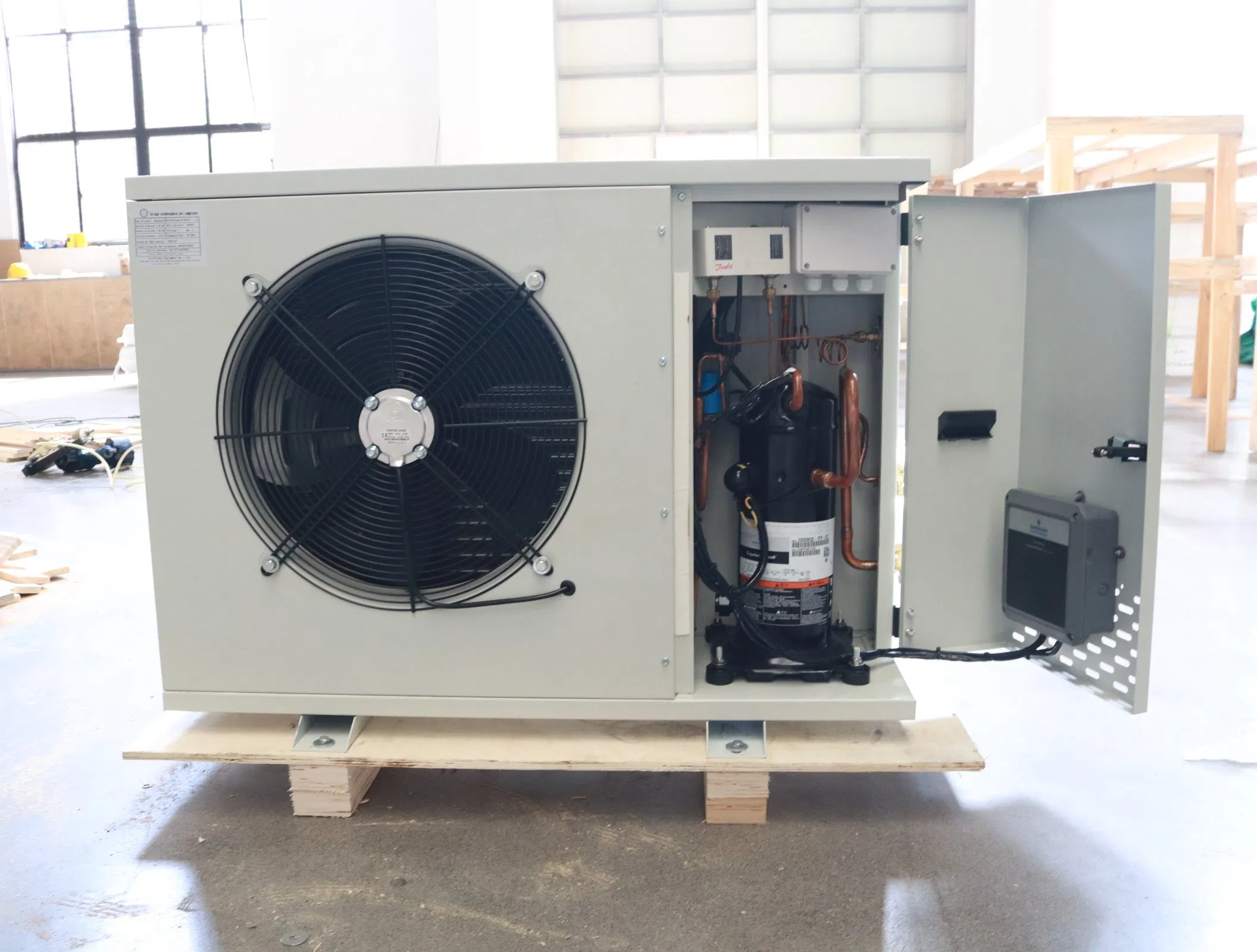

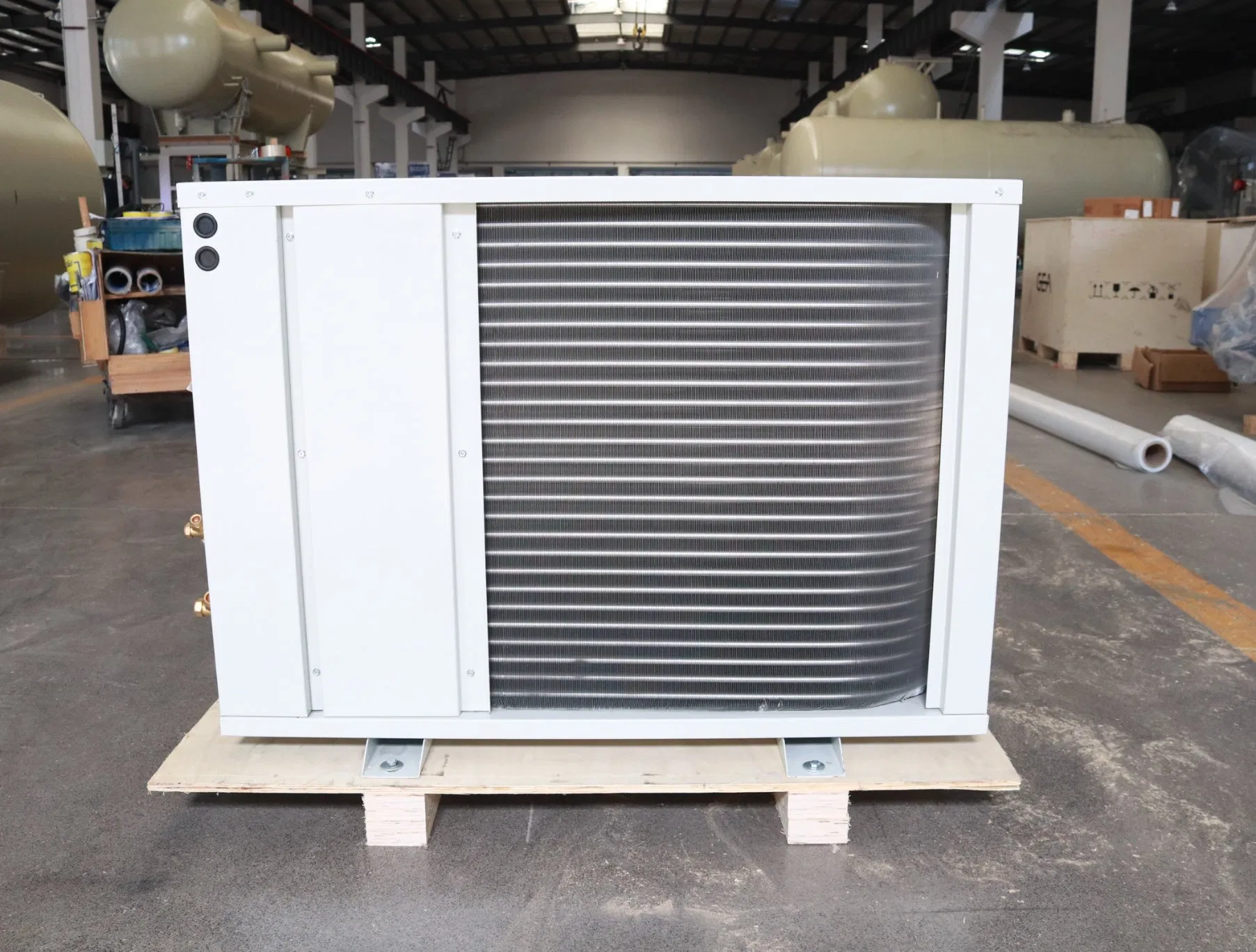

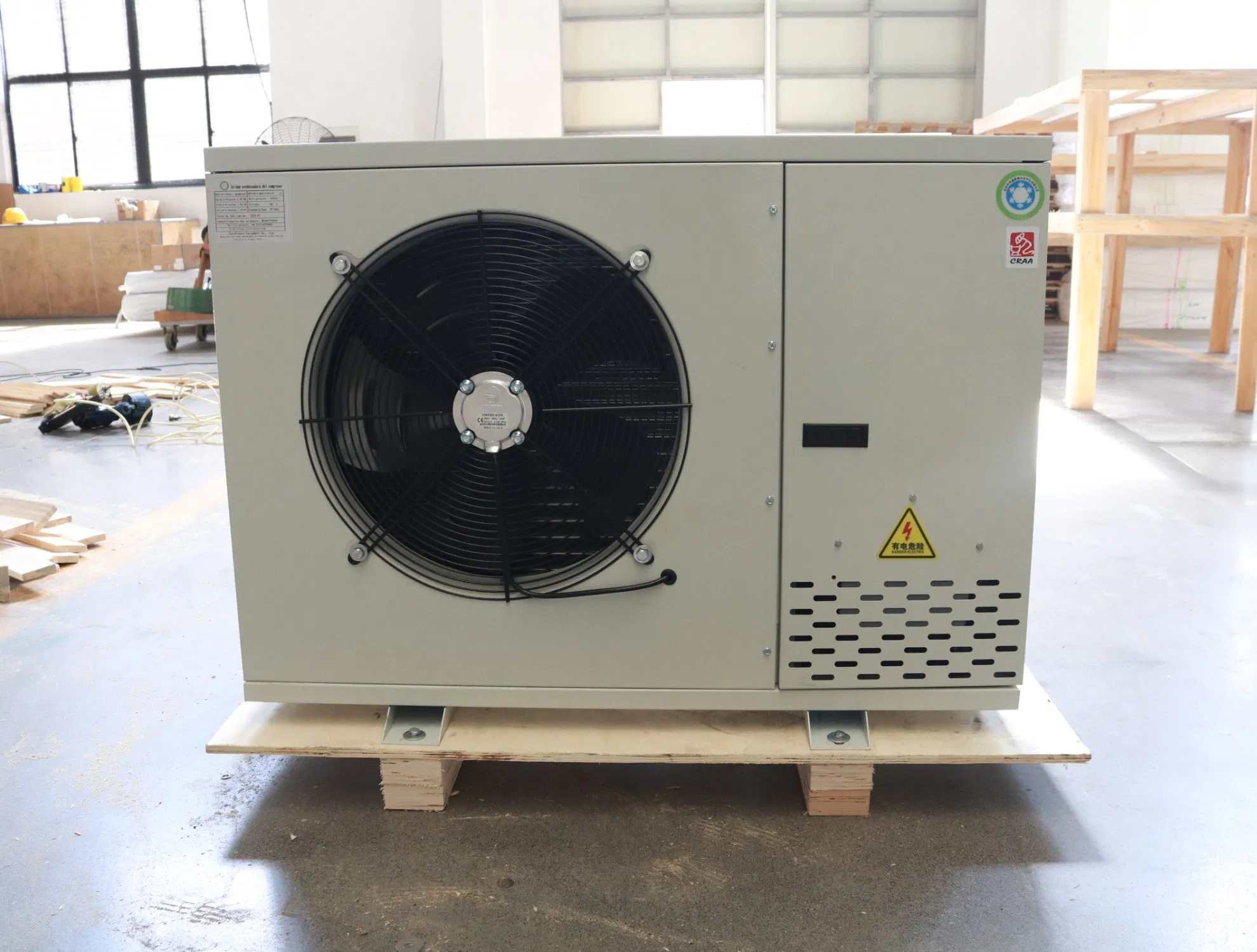

MXJQ Series Air Cooled Box Type Condensing Unit
This box type condensing unit is designed for compact structure, modern appearance, and high energy efficiency. It effectively controls room temperatures from -50°C to +15°C. It is ideally suited for industrial refrigeration, cold storage, food processing, medical storage, and commercial facilities like hotels and shopping malls.
Labor Saving: Plate work structure, lightweight, and well-formed design.
Time Saving: Connecting tubes adopt bell-like mouths, reducing installation time by 50%.
Space Saving: Thin-wall design allows for wall-back installation.
Durability: Anti-corrosive galvanized sheet steel with extra spray coating for harsh environments.
⚙️
Model Nomenclature & Standard Components
Model Example: MXJ B S 10 M A G Y / K S
• MXJ: Box Compression Condenser Unit
• B: Compressor type (Q: Hermetic, B: Piston, L: Screw)
• S: Double stage semi-hermetic / (Single stage)
• 10: HP Rating | M: Temp range (H/M/L/J)
• A: Side blowout | B: Roof blowout
• G: Brand (B:Bitzer, G:Copeland, R:Refcomp, F:Frascold)

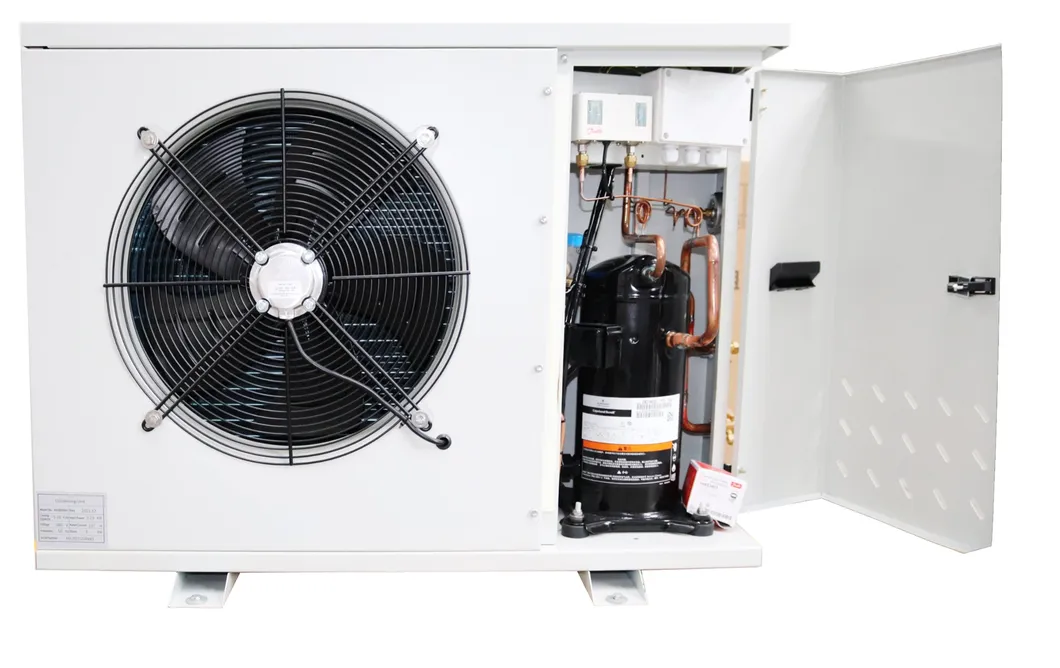

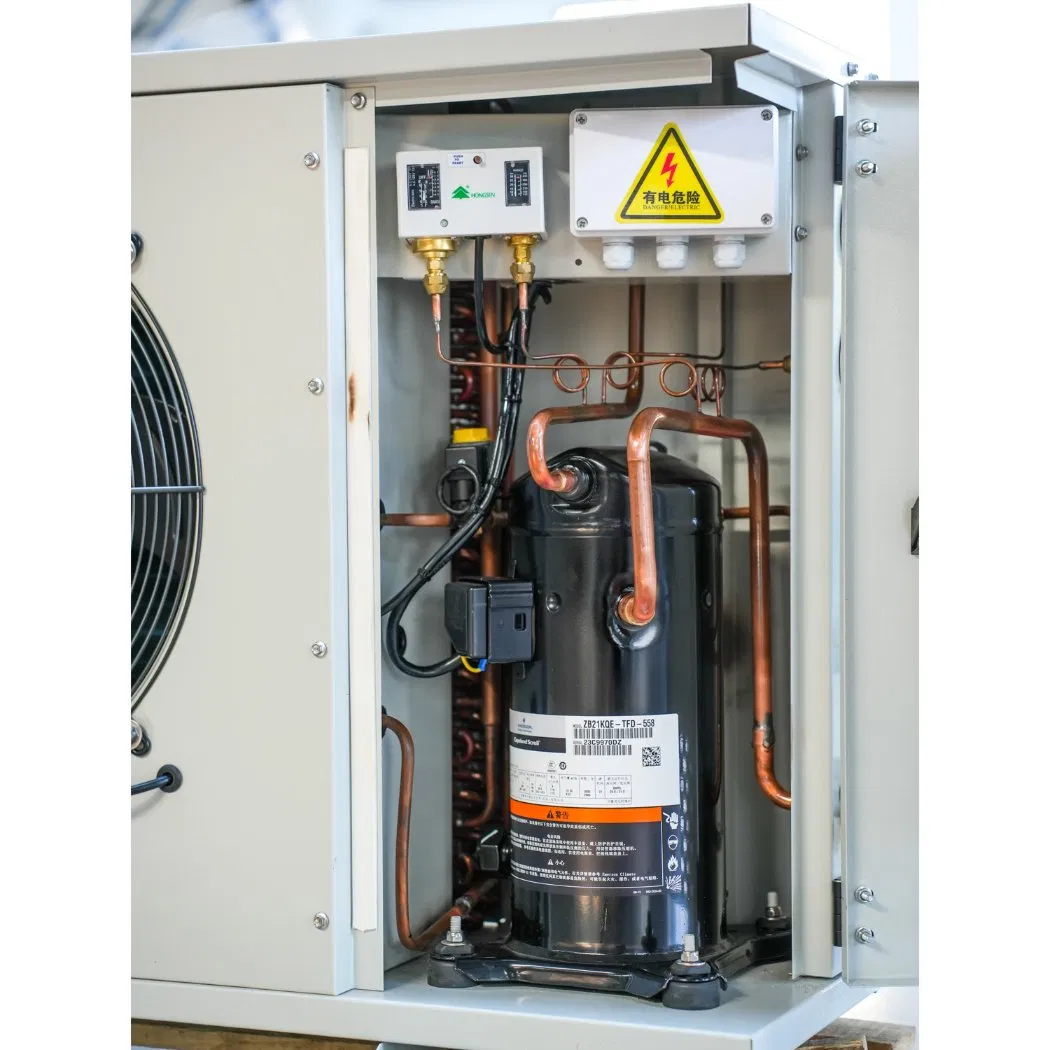

Standard Components include: Compressor, oil heater, accumulator, oil separator, sight glasses, solenoid valve, condenser, fan motor, receiver, pressure gauge, pressure controller, filter drier, and terminal box.
| Unit Model |
MXJQ02 |
MXJQ03 |
MXJQ04 |
MXJQ05 |
MXJQ06 |
| Power Supply | 380V/3P/50HZ |
| Compressor | Model | ZB15KQE | ZB21KQE | ZB29KQE | ZB38KQE | ZB45KQE |
| Qty | 1 | 1 | 1 | 1 | 1 |
| Evap. Temp | -12ºC ~ +5ºC |
| Condenser Fan | Qty | 1 | 1 | 1 | 2 | 2 |
| Power (W) | 370 | 370 | 370 | 740 | 740 |
| Capacity (-8ºC) | Cooling (KW) | 3.36 | 5.09 | 6.91 | 8.71 | 10.2 |
| Input (KW) | 1.8 | 2.5 | 3.32 | 4.19 | 4.75 |
| Dimensions | L (mm) | 1050 | 1050 | 1050 | 1150 | 1150 |
| H (mm) | 775 | 775 | 775 | 1280 | 1280 |
❓
Frequently Asked Questions
1. What is the temperature range of the MXJQ series?
The unit is versatile and can control room temperatures ranging from -50°C to +15°C depending on the specific model configuration.
2. What types of compressors are used in these units?
We offer various world-class brands including Bitzer, Copeland, Refcomp, and Frascold in hermetic, piston, or screw types.
3. Is the unit suitable for outdoor installation?
Yes, the unit uses anti-corrosive galvanized sheet steel that has passed strict salt spray tests, making it suitable for harsh weather environments.
4. How does this design save installation time?
The connecting tubes utilize a bell-like mouth design, which simplifies the process and can reduce installation time by up to 50%.
5. Does the unit operate quietly?
Yes, it features mute refrigerating technology and fans designed with big angles and pit-impressing technology to ensure safe and low-noise operation.
6. What is the standard packaging for shipping?
All units are securely packed in wooden cases to ensure safety during transit, with a typical package weight of approximately 200kg.
