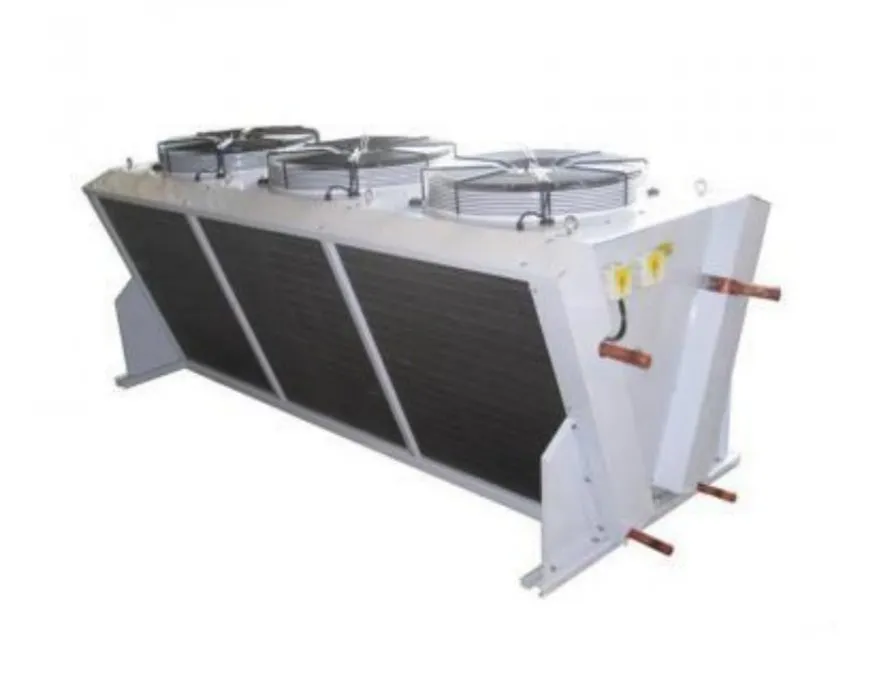

H/V/U Air Cooled Condenser
Fin-type condensers are high-efficiency heat dissipation units specifically designed for refrigeration compressor condensing units and parallel compressor units. They come in three structural forms: H-type, V-type, and U-type. With various combinations of width, length, and airflow direction, as well as side-discharge and top-discharge configurations, they ensure optimal adaptability. Different fan quantity combinations allow for precise condensation pressure regulation. Additionally, external rotor motors can be selected to reduce motor noise. These condensers cover a heat dissipation capacity range from 6KW to 227KW and are suitable for various refrigerants, including R134a, R404A, R507A, and R407C.
Product Features:

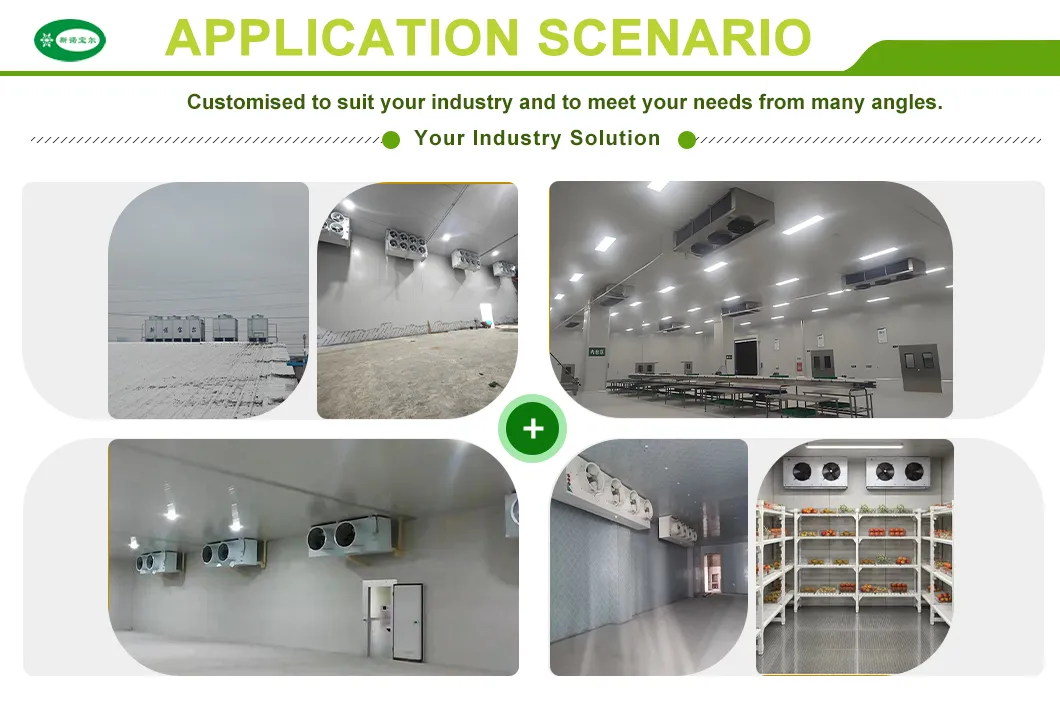

Applications:
H-Type Parameters
| Model | Capacity (Kw) | Coil Rows | Area | Fan Qty | Fan Blade | Power (W) | Air Flow | Inlet Pipe |
|---|---|---|---|---|---|---|---|---|
| FNH-2 | 0.6 | 2×4 | 2 | 1 | φ200 | 40 | 500 | φ9 |
| FNH-6.0 | 1.98 | 3×6 | 6 | 1 | φ300 | 75 | 1560 | φ12 |
| FNH-12.8 | 4.3 | 4×8 | 12.8 | 1 | φ350 | 140 | 2290 | φ16 |
| FNH-28 | 9.2 | 6×9 | 28 | 1 | φ400 | 180 | 3400 | φ19 |
| FNH2-34 | 11.1 | 4×10 | 34 | 2 | φ400 | 2×180 | 2×3400 | φ19 |
U-Type Parameters
| Model | Capacity (Kw) | Area (m²) | L×W×H (mm) | Rows | Fan Qty | Blade | Power (W) |
|---|---|---|---|---|---|---|---|
| FNV-80 | 26.4 | 80 | 1470×820×700 | 3×12 | 2 | φ450 | 2×250 |
| FNV-160 | 52.8 | 160 | 1800×870×800 | 4×14 | 2 | φ550 | 2×600 |
| FNV-240 | 79.2 | 240 | 2260×900×900 | 4×16 | 3 | φ550 | 3×600 |
| FNV-340 | 112.2 | 338 | 2730×1000×1000 | 4×18 | 3 | φ630 | 3×800 |

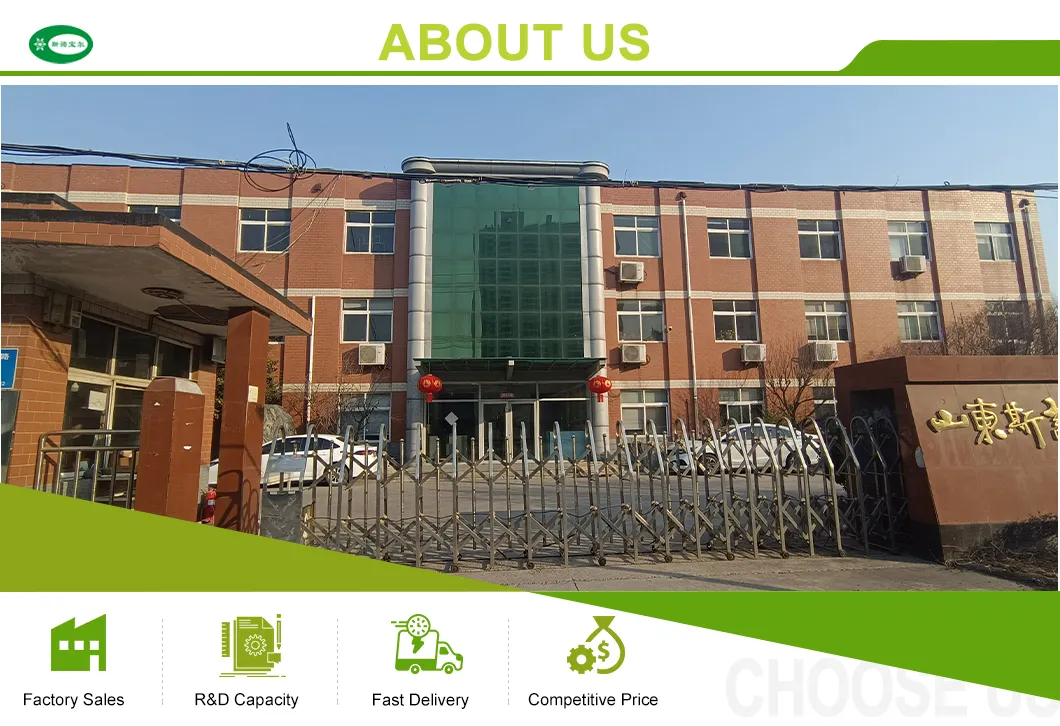

Established in 1991, we are a leading supplier in China for compressors, series condenser units, refrigeration system components, and valves. With over three decades of growth, we have evolved into a diversified group enterprise focusing on creating brand value and providing optimal services for all partners.

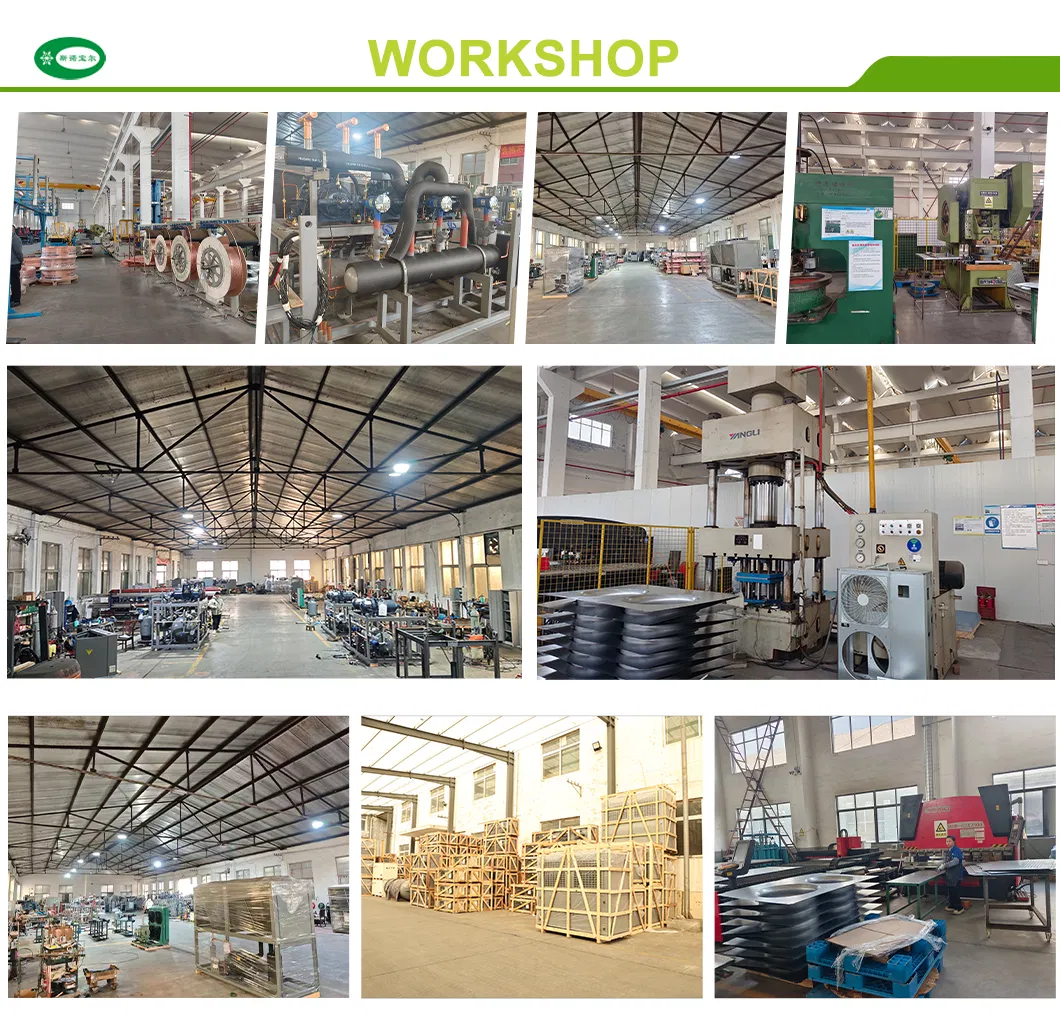

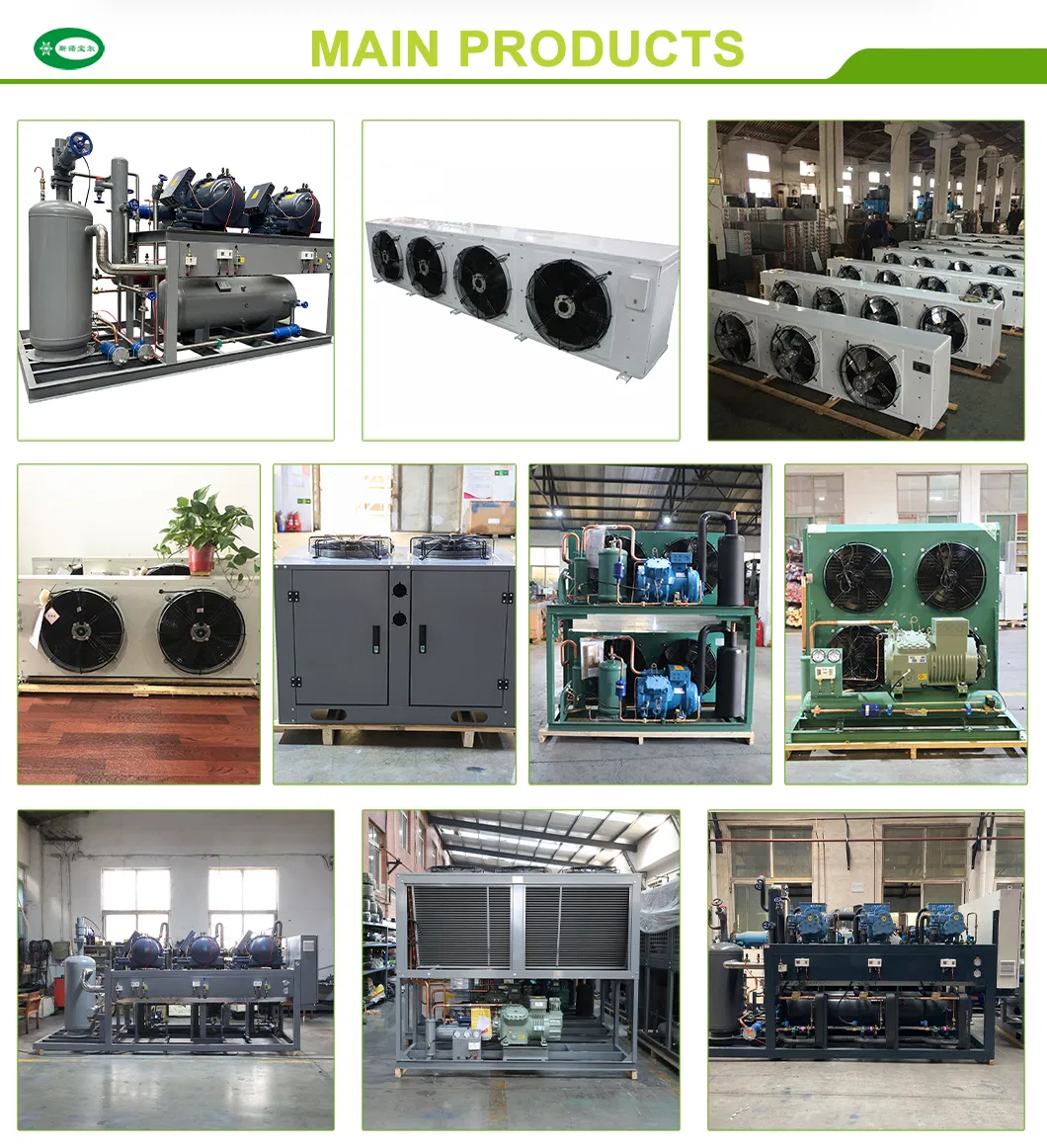

Our production specializes in research, development, and manufacturing of various refrigeration units, including box-type, open-type, piston parallel units, screw units, and chiller units. We have been honored with multiple industry awards for our commitment to quality and service excellence.
We have established a standardized logistics system to ensure safe and timely delivery. All devices are packaged in customized shock-proof materials with dual reinforcement for core components like compressors. Each unit undergoes rigorous static stability tests and packaging inspections before leaving the factory.
