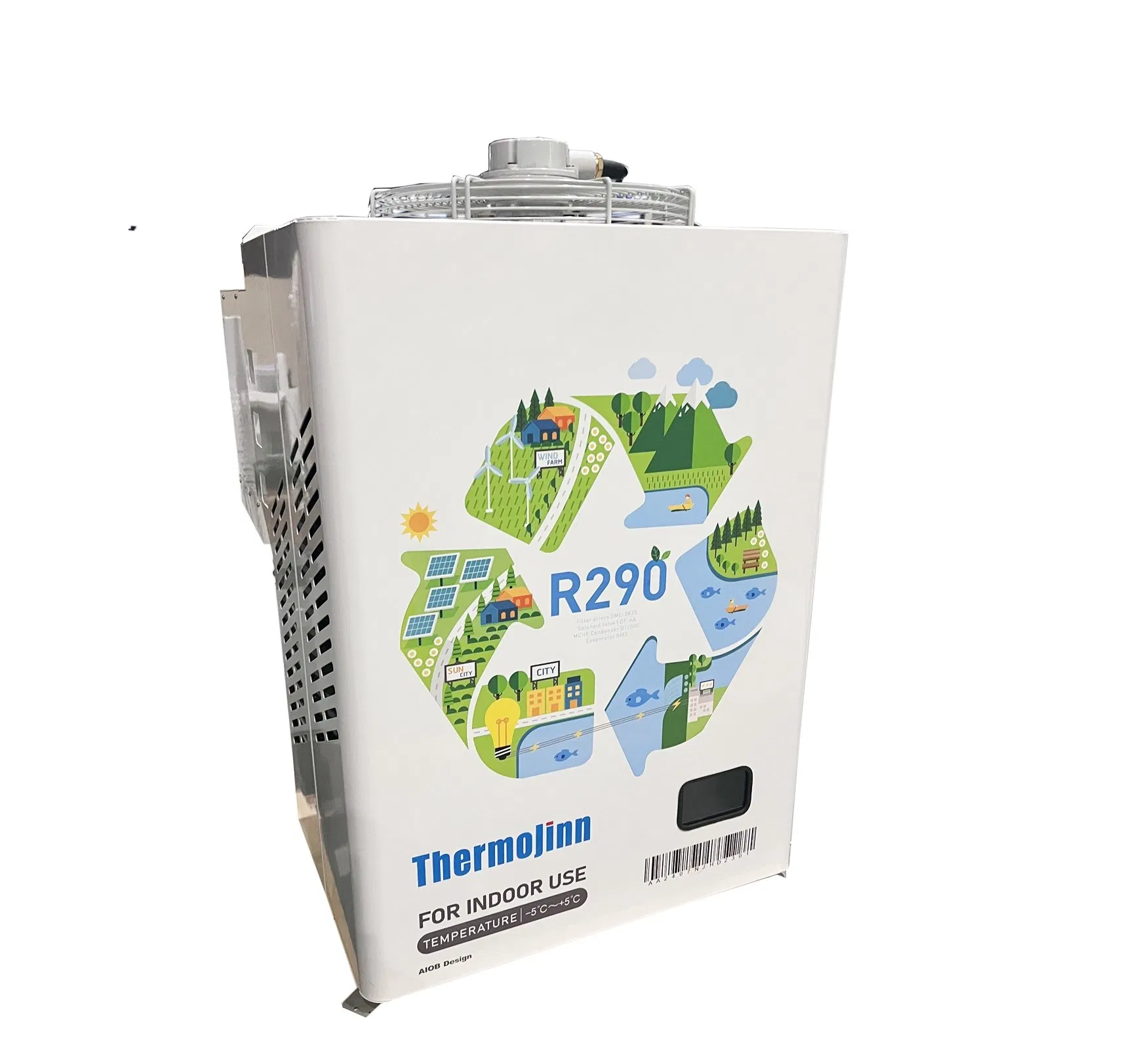

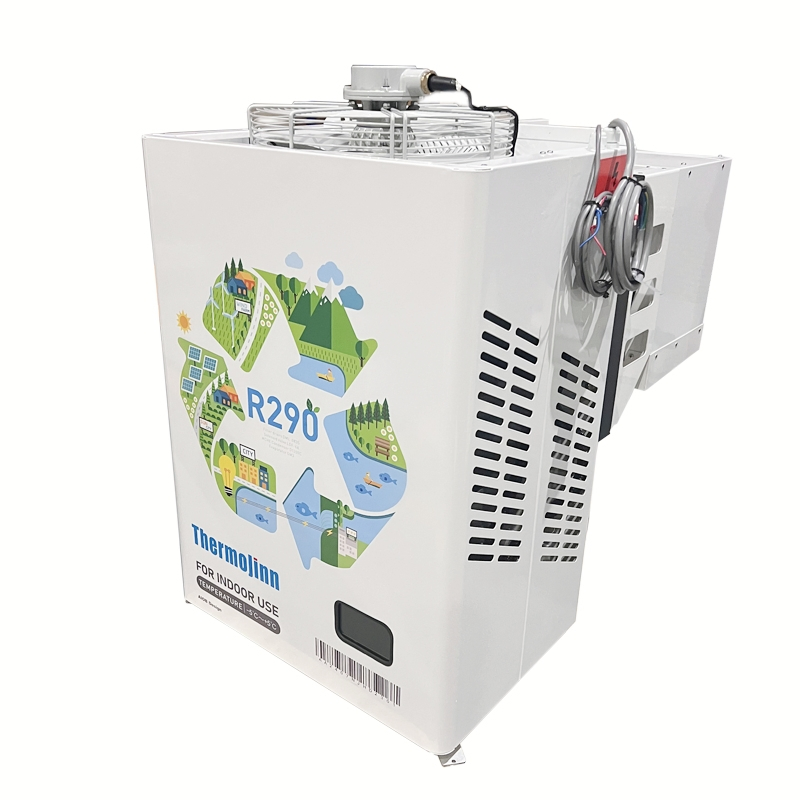

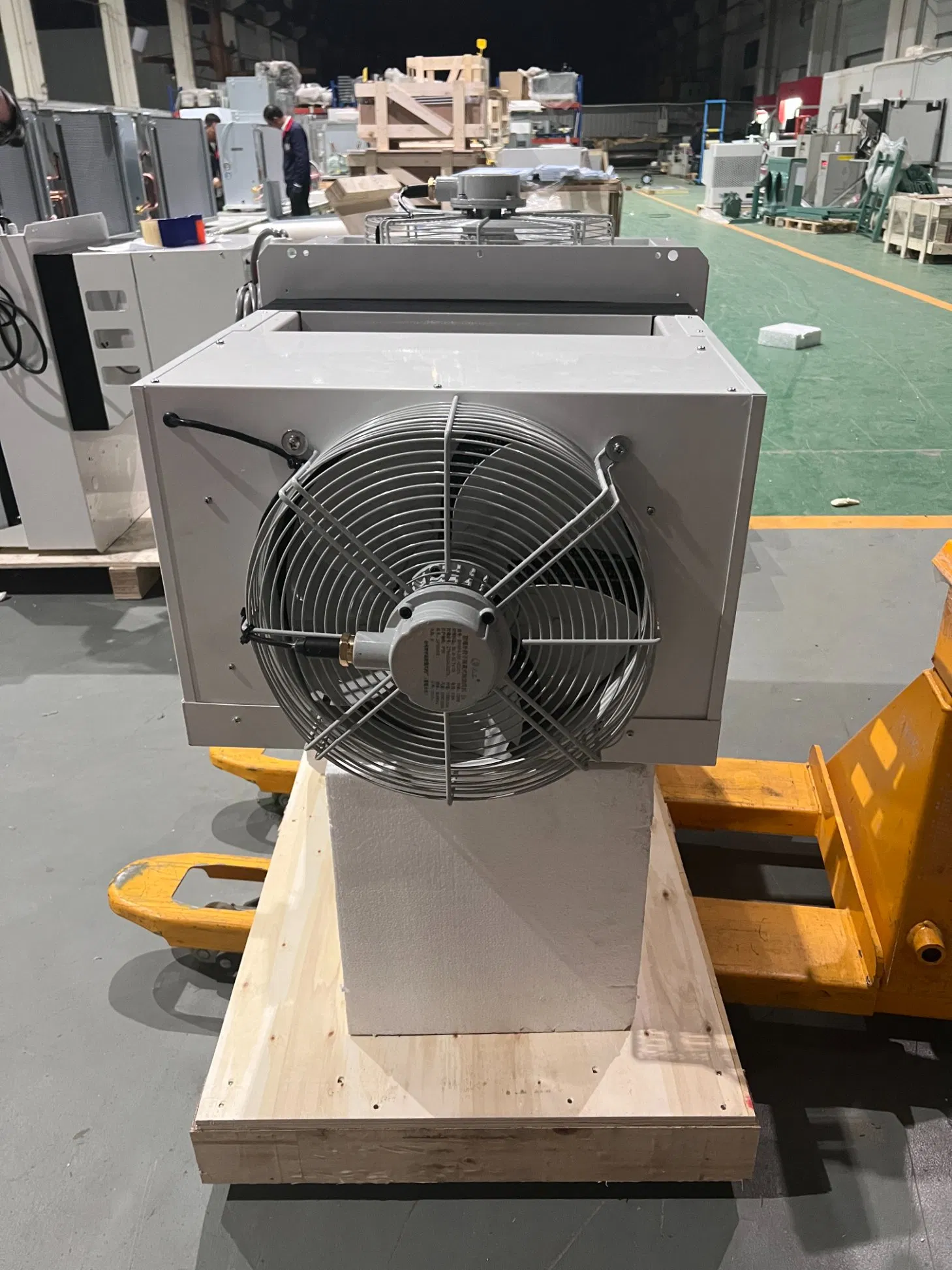

Medium Temperature Units Wall-Mounted Monoblock Unit for Cold Storage

1 / 5

Medium Temperature Units Wall-Mounted Monoblock Unit for Cold Storage

Customization:	Available
Weight:	100kg
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Type

Air Cooled & Water Cooled

Total Input

3.5kw

Size

60*90*90cm

Sealing

Totally Enclosed

Cooling Mode

Evaporative

Capacity

Medium/Low Temp (-25~10)

Service

24 Hours Service

Coil

Copper

System

Monoblock

Certification

ISO, CCC

Origin

China

Fields

Cold Room, Freezer

Product Description

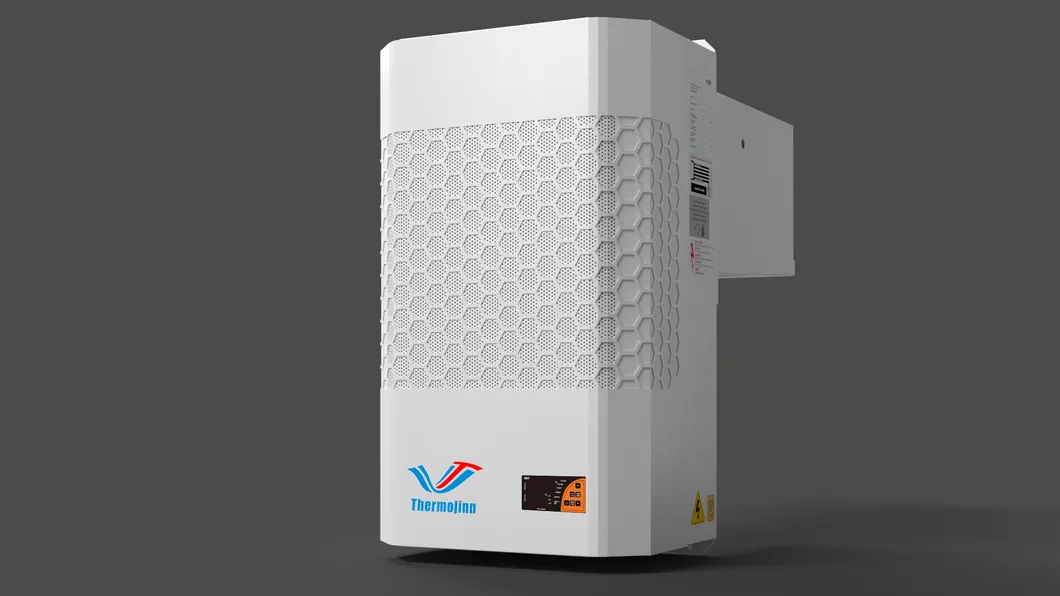

A01W / A01T Series Monoblocks

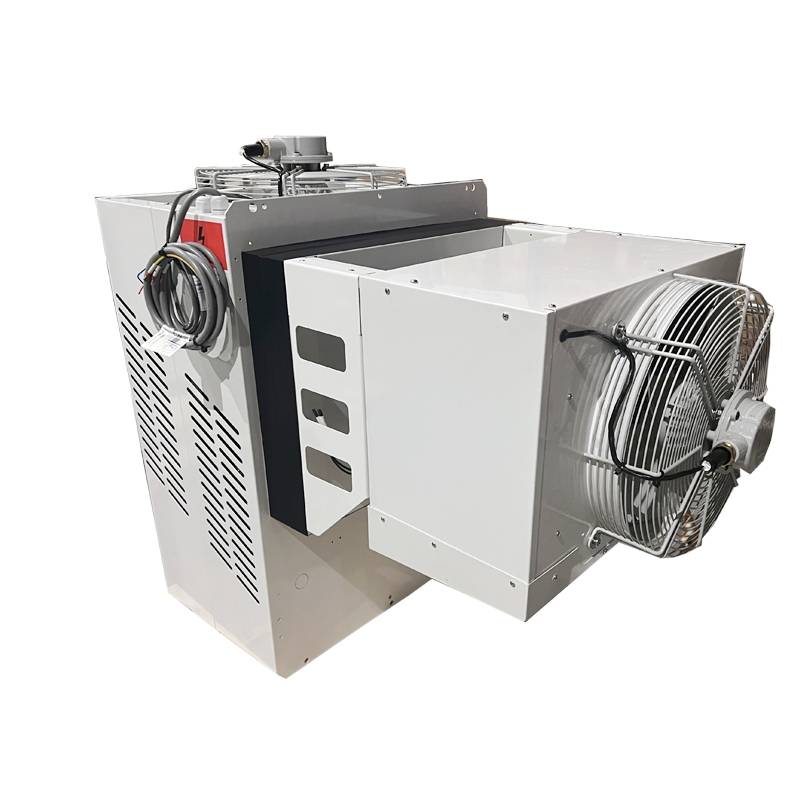

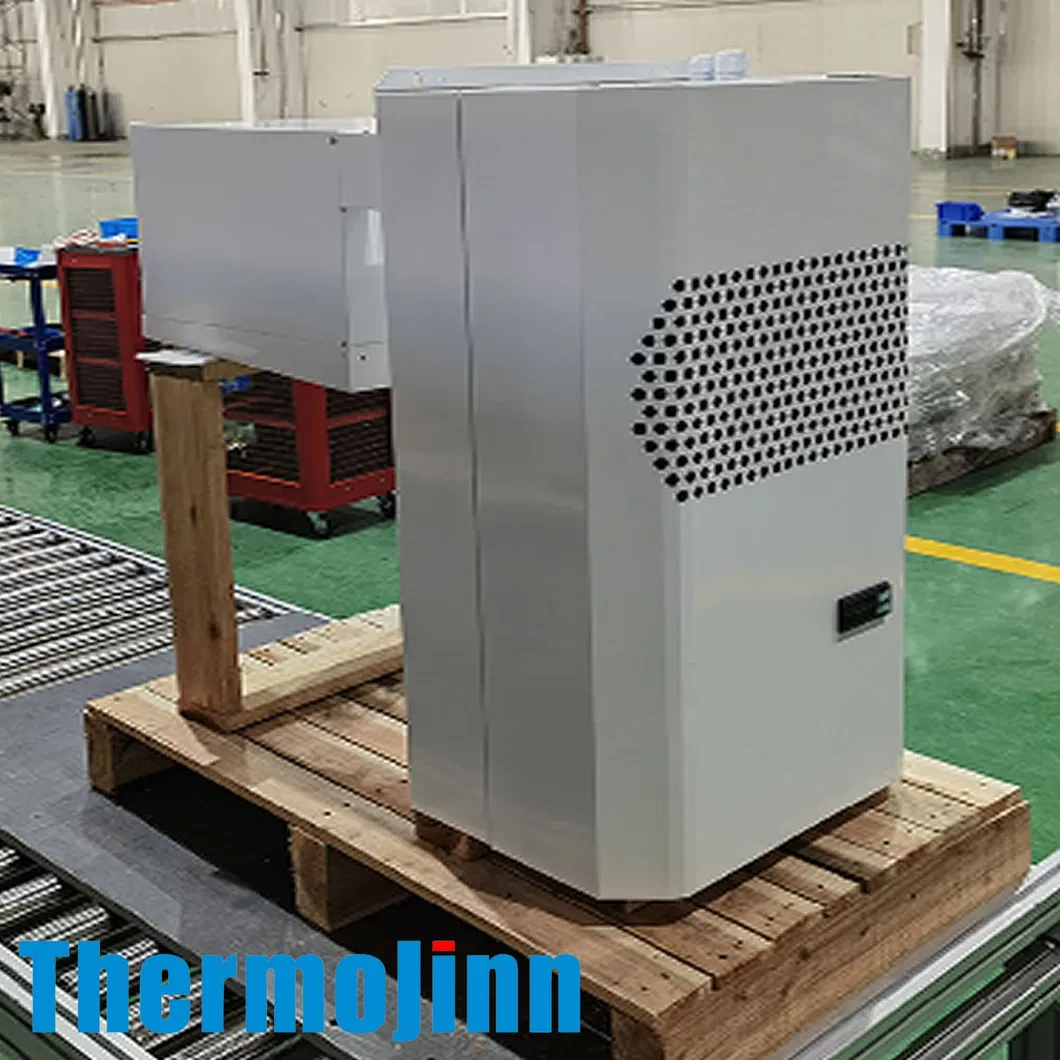

A01W Wall straddle Monoblock & A01T Through wall Monoblock applies to various cold storages. The unit can be installed on the wall, and can be assembled with multi units stacked together. Cases of the Monoblock are with Epoxy sprayed steel plates. Hermetic piston compressors are applied, with R404A as the refrigerant.

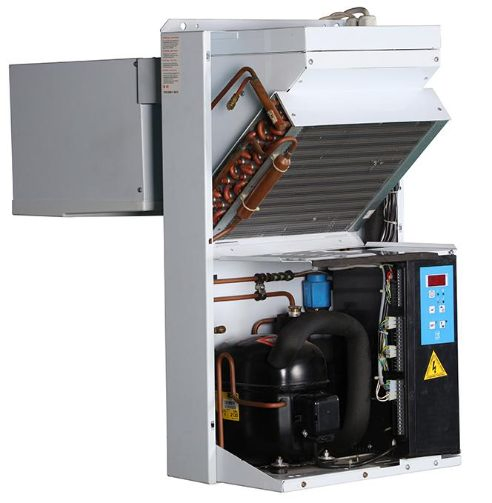

Standard Configuration

Low noise Hermetic compressor
One time formulation casing for evaporator
Auto defrosting system
Condenser over-dirt alarm system
Condensate water evaporation tray
Expansion through capillary tube system
Filter on the liquid line
Cold room light and bulb
Cable for door micro switch & switch heater
High- and low-pressure switches
Remote electronic control panel

Technical Parameters

Medium Temperature Arguments - A01W

Model	WMA010C2	WMA015C2	WMA018C2	WMA025C2
Compressor (HP)	1HP	1.5HP	1.8HP	2.5HP
Power supply	220V/1P/50Hz	220V/1P/50Hz	380V/3P/50Hz	380V/3P/50Hz
Condenser Air flow	630 m3/h	1260 m3/h	2670 m3/h	2670 m3/h
Installation power	0.995kw	1.477kw	1.662kw	2.135kw

Low Temperature Arguments - A01W

Model	WLA010C2	WLA020C2	WLA030C2	WLA040C2
Compressor (HP)	1HP	2HP	3HP	4HP
Condenser Air flow	630 m3/h	1260 m3/h	2670 m3/h	2670 m3/h
Installation power	0.86kw	1.538kw	1.992kw	2.539kw

Installation & Exhibition

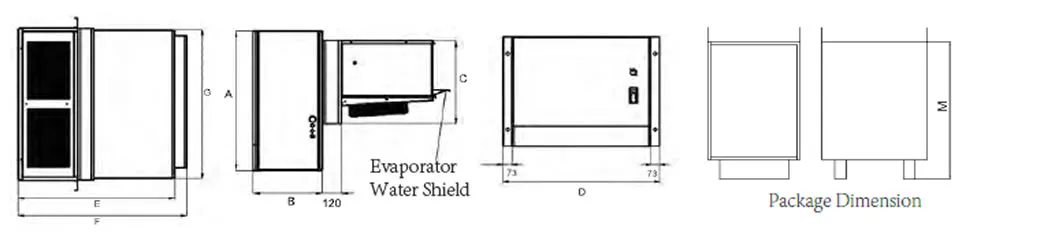

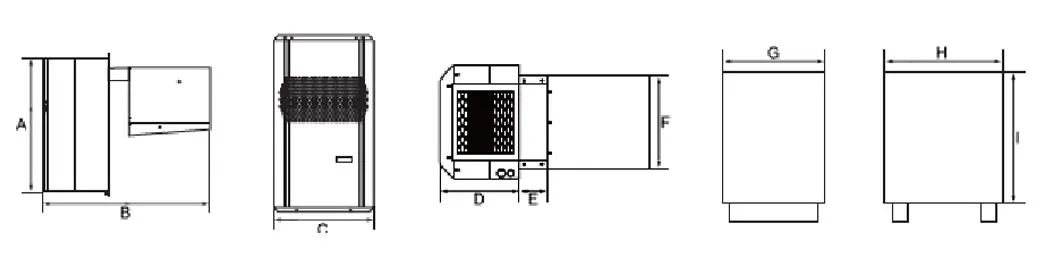

The installation of the A01W and A01T series is wall-mounted. The evaporator part is designed to be placed on or through the wall, while the condensing part stays outside. Units must be positioned with good air circulation, away from high heat sources.

Packing & Transport

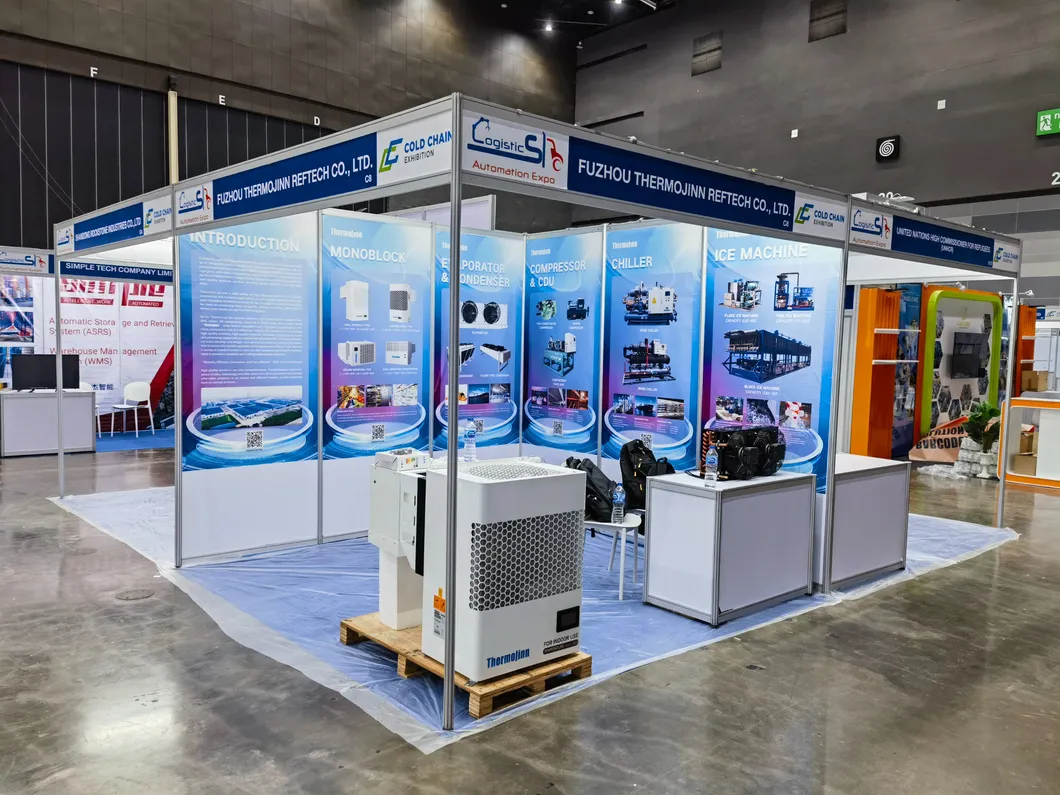

Exhibition & Certificates

Frequently Asked Questions

How long is the delivery time?

It typically takes within 1 month from the receipt of the deposit to the preparation of the goods.

How long is the quality guarantee period?

The warranty period is 1 year, and after-sales service is available 24 hours a day to support your operations.

How is the price determined?

Our prices (FOB/CIF/CNF) are based on quantity, material, and specific size requirements. Bulk orders are eligible for significant discounts.

Can the products be customized?

Yes, we can customize material and size according to your specific requirements. All components are available for modification to suit your environment.

What are the advantages of a monoblock unit?

Monoblock units are compact, factory-tested for efficiency, and very easy to install as they do not require complex onsite piping, reducing labor costs.

What refrigerants are used in these units?

Our units primarily use R404A refrigerant, which is highly efficient for medium and low-temperature applications.
