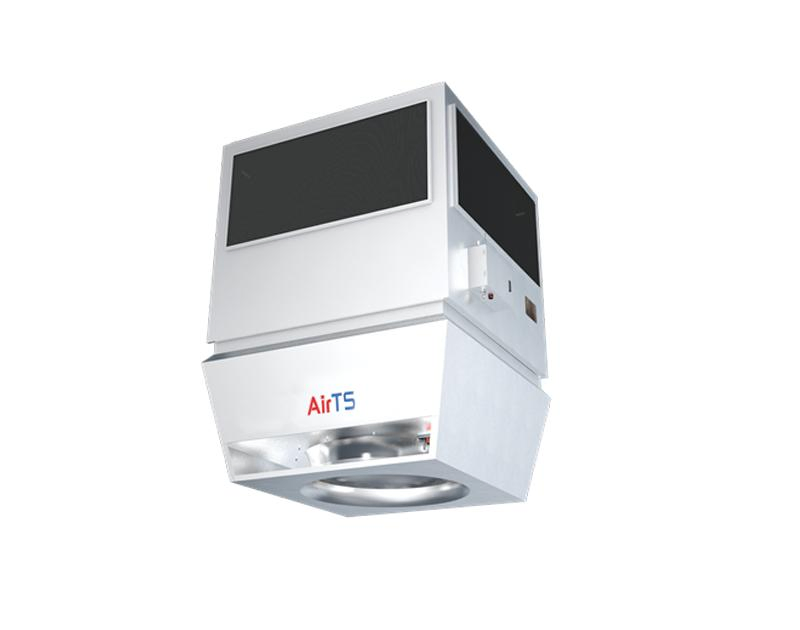

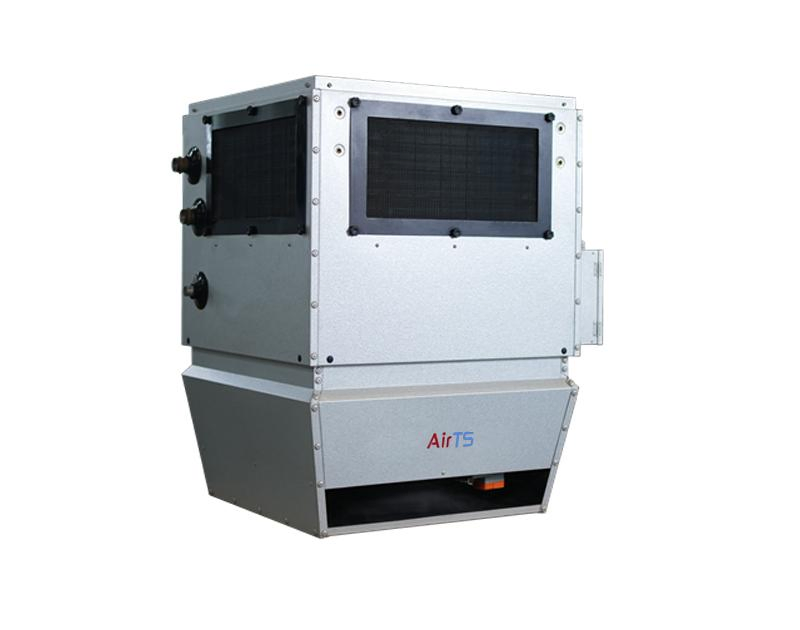

Airts Rated Heating Capacity 56kw Industrial Vrf Airts-530n Indoor Unit Vrf Roof Air Conditioner Efficient Reliable Cooling Solution

Customization: Available
After-sales Service: Long Term
Warranty: One Year

Product Description

Basic Information
Model NO.
530N
Type
Cabinet Air Conditioner
Air Tube Material
Galvanized Sheet
Operating Voltage
380/400 VAC
Mounting
Ceiling Mount
Lifetime
>20 years
Certification
ISO, CE
Rated Cooling Capacity
53 Kw
Rated Heating Capacity
56 Kw
Installation Height
4-12 M

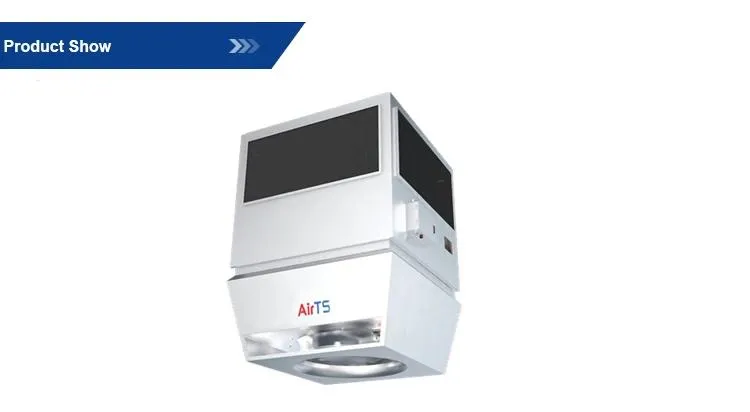

Industrial VRF Indoor Unit
Working Principle

The VRF air conditioners, also known as "one-to-many," is a type of system where one outdoor unit is connected to several indoor units. Each indoor unit can operate independently or be controlled together. The system has an outdoor unit connected by pipes to indoor units that have components like outdoor heat exchangers, compressors, and other parts. The indoor units consist of fans and direct cooling elements.

Using the pipes, the outdoor unit can supply cooling liquid to many indoor units. It controls the compressor's cooling fluid circulation and the flow into various indoor heat exchangers to meet the indoor cooling and heating needs.

The indoor temperature sensor controls the valve on the indoor unit's cooling pipe. By adjusting the pressure, the system can control the outdoor unit's compressor speed or change its operating mode to adjust the cooling capacity according to the load.

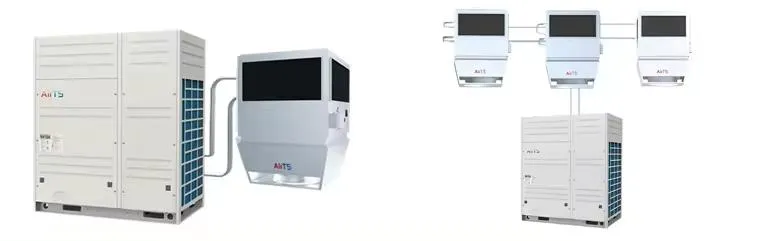

System Drawing
Key System Features
  • Significant energy savings: The system adjusts the compressor speed and refrigerant flow automatically to operate more efficiently, reducing energy consumption during lighter use.
  • Space-saving design: Outdoor units are usually installed on the roof, taking up no extra space. The layout saves on building height compared to water systems.
  • Easy installation: Simple setup with fewer components ensures the system runs reliably and safely.
  • Versatile operation: Meets different room requirements simultaneously, allowing cooling in one area while heating another in certain setups.
Indoor Unit Parameters
Parameter Item Unit Specification (530N)
Rotating speed of fanr/min0~900
Standard circulating airflowm³/h0~6900
Rated cooling capacitykW53
Rated heating capacitykW56
VoltageV380±5%
Electric powerkW0~0.85
CurrentA0~1.65
Suitable installation heightm4~12
Control mode-VAV stepless regulation
NoisedB<60

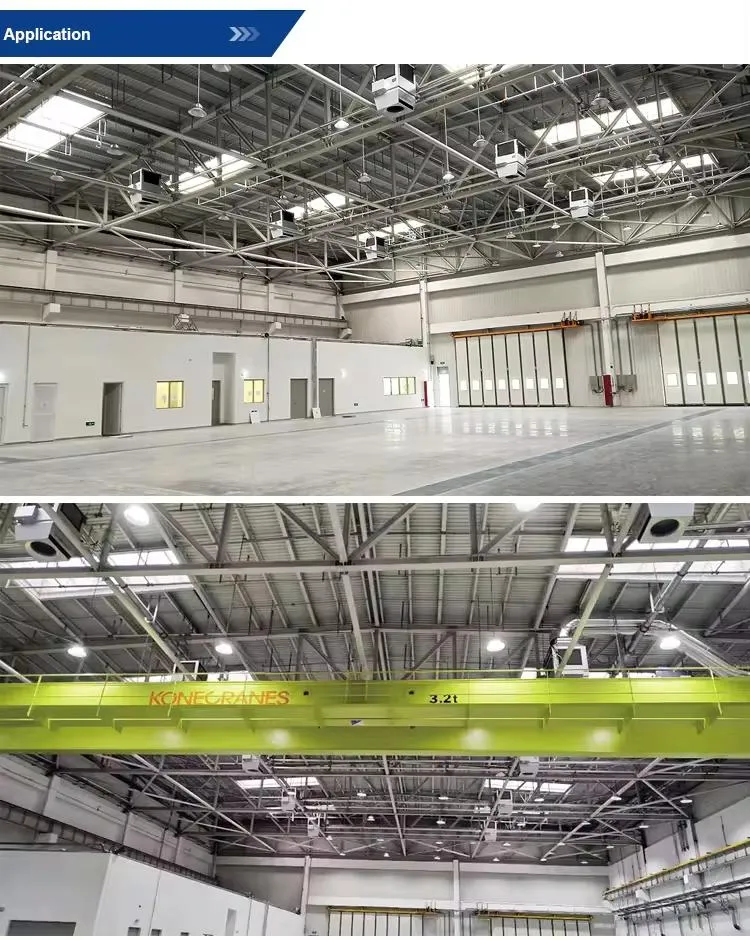

Industrial Application 1
Industrial Application 2
Industrial Application 3
Quality Assurance & Packaging

To ensure the safety of your goods, professional, environmentally friendly, and efficient packaging services are provided. We strictly follow quality control protocols including pre-production samples and final inspections before shipment.

Packaging Process 1
Packaging Process 2
Certificate 1
Certificate 2
Certificate 3
Frequently Asked Questions
What is the rated capacity of the 530N model?
The 530N unit provides a rated cooling capacity of 53 kW and a rated heating capacity of 56 kW, making it ideal for high-space industrial environments.
At what height can this air conditioner be installed?
This system is specifically designed for large spaces with a suitable installation height ranging from 4 to 12 meters.
How does the VRF system save energy?
The system utilizes VAV stepless regulation to automatically adjust compressor speed and refrigerant flow based on the actual load, significantly reducing power consumption.
What are the power requirements for operation?
The unit operates on a 380/400 VAC voltage supply, with a rated electric power consumption between 0 to 0.85 kW.
How is the product quality guaranteed?
Quality is ensured through a rigorous process including a pre-production sample before mass production and a final comprehensive inspection of every unit before shipment.
What is the noise level during operation?
The indoor unit is designed for industrial efficiency with a noise level kept below 60 dB, ensuring a standard working environment.
