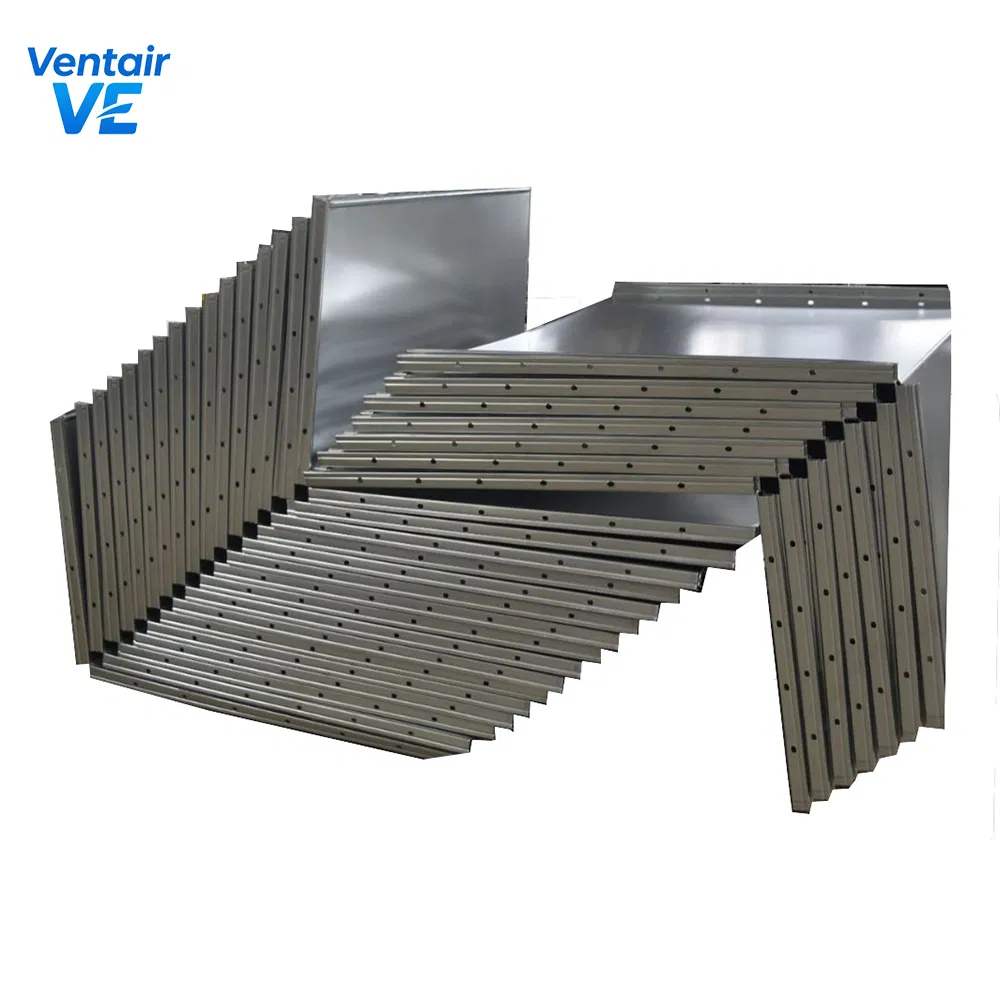

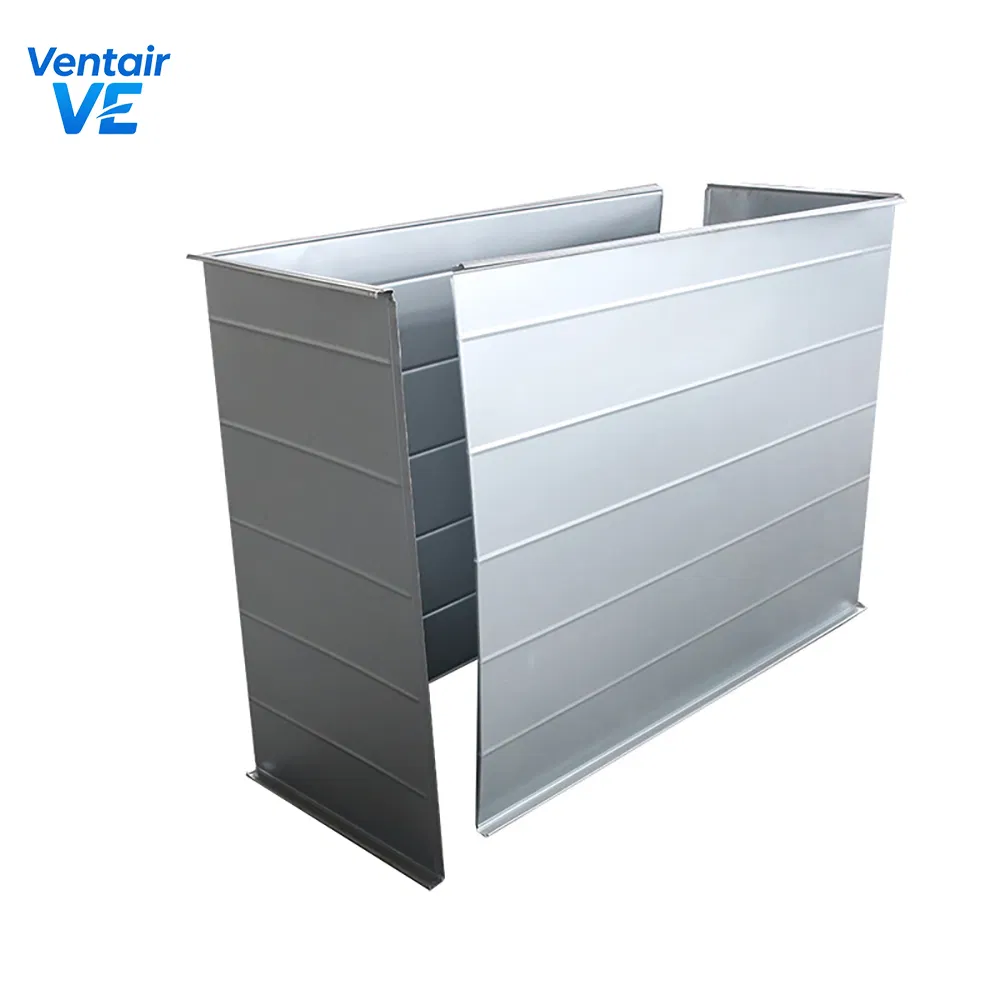

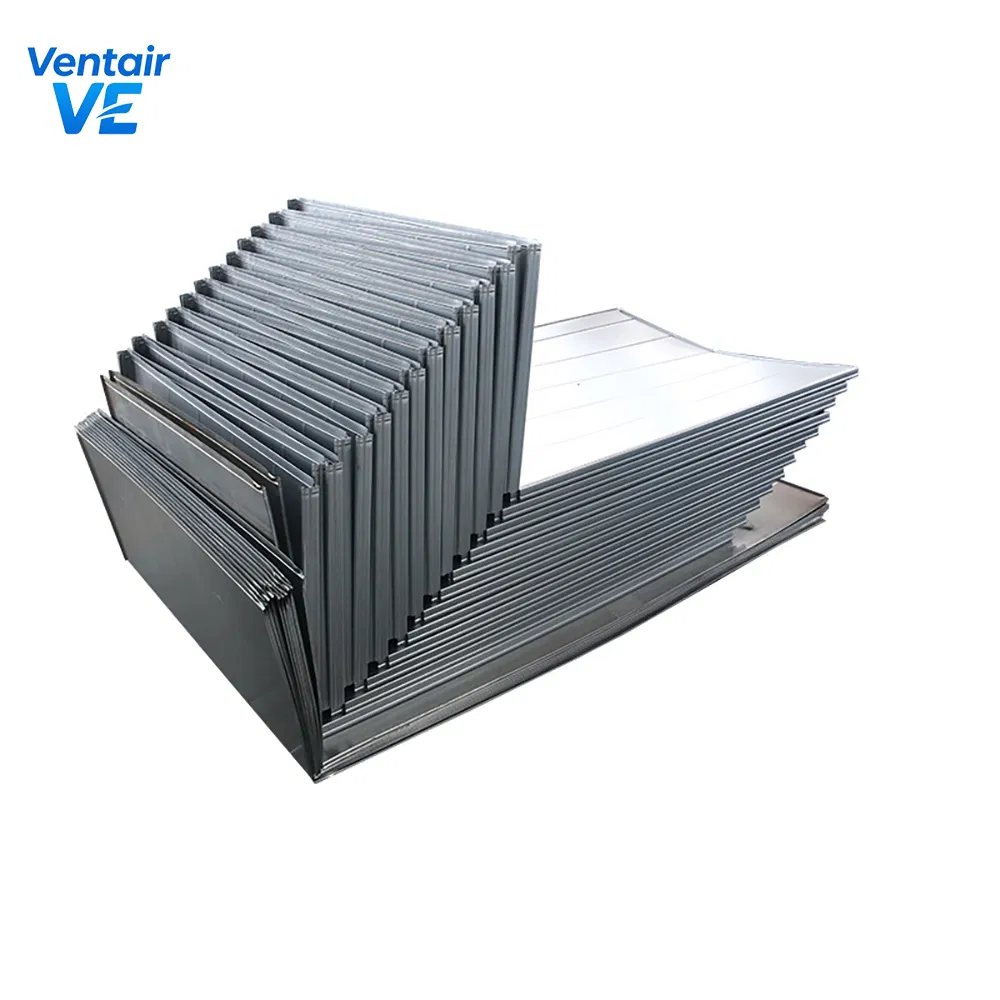

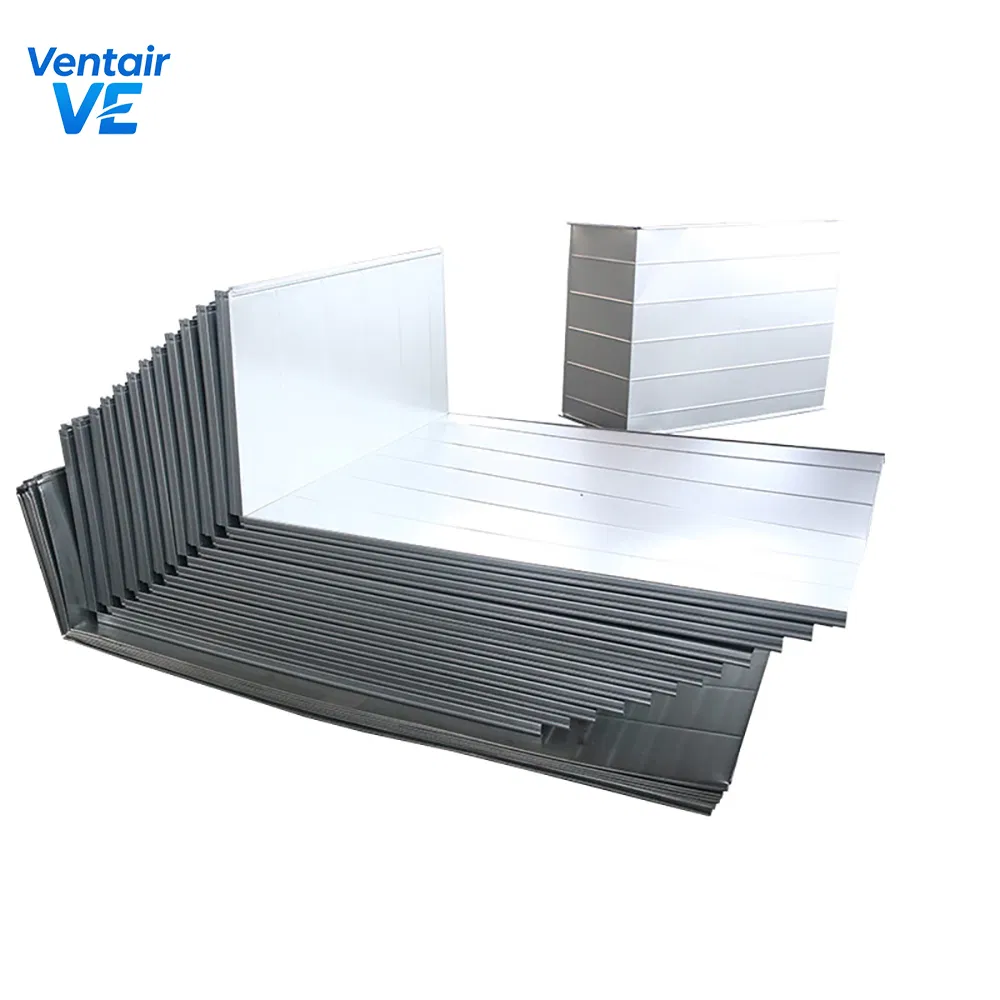

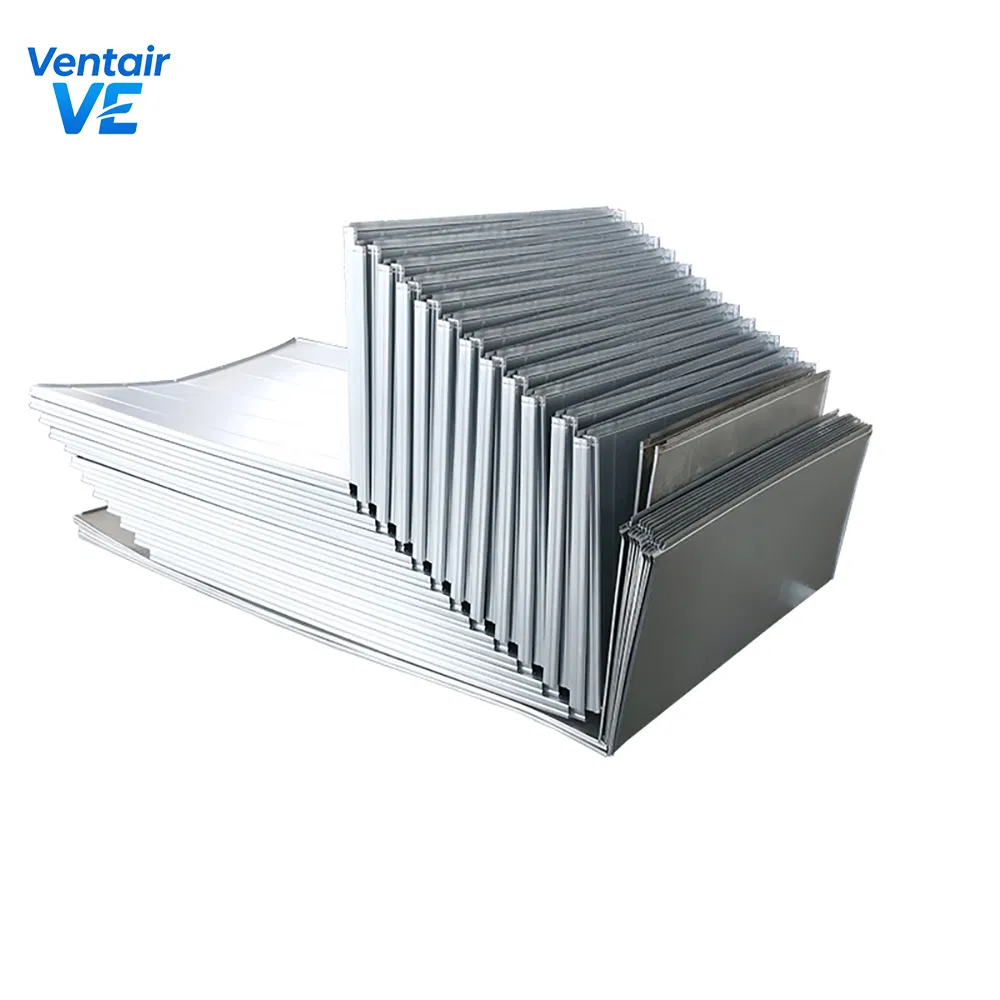

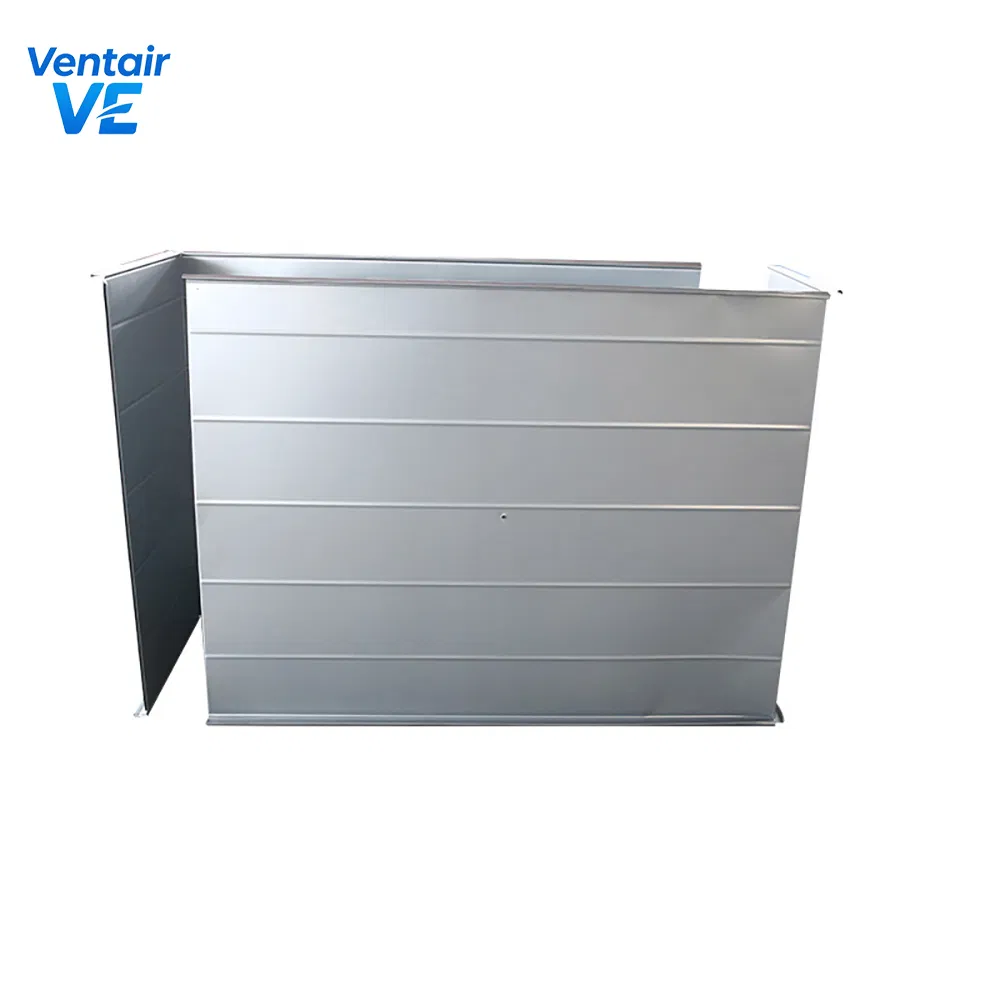

HVAC L Shaped Galvanized Steel Rectangular Air Duct

Basic Information

Model NO.:

VA-RD11

Application:

HVAC Ventilation Duct

Shape:

Rectangle

Performance:

Corrosion Resistance

Thickness:

0.5-1.5mm

Material:

Stainless Steel / Galvanized Steel

Production Capacity:

500,000 Pieces Per Year

Size:

Customizable

Product Description

A metal rectangular duct is a fundamental component in Heating, Ventilation, and Air Conditioning (HVAC) systems, designed for the controlled conveyance of air in commercial, institutional, and industrial buildings. Its defining characteristic is its cross-sectional shape, which offers significant advantages in spatial planning and structural integration compared to round ducts.

Primary Function: To efficiently transport supply (conditioned) air, return air, or exhaust air throughout a building with minimal air leakage and pressure loss.

Core Characteristics

Material: Primarily fabricated from galvanized steel (GI) for corrosion resistance and durability. Stainless steel is used for corrosive environments, while aluminum is chosen for weight-sensitive applications.
Fabrication: Manufactured from flat sheets joined using automated coil lines. Common joints include Pittsburgh locks and various flange systems for transverse connections.
Space Efficiency: The flat-sided profile allows for installation flush against ceilings or within wall cavities, maximizing plenum space.
Insulation: Can be externally wrapped or internally lined to prevent condensation, reduce thermal loss, and dampen noise.

Feature / Aspect	Description & Common Specifications	Typical Application / Note
Primary Material	Galvanized Steel (GI), Stainless Steel, Aluminum	GI is the industry standard for general HVAC.
Standard Gauge	Ranges from 0.5mm to 1.5mm or thicker	Thickness increases with duct size and system pressure.
Connection Systems	TDF (Transverse Duct Flange), Angle Iron Flange, S&D	TDF is the modern standard for airtight connections.
Key Strength	High Rigidity	Maintains shape under pressure when properly braced.
Air Leakage Class	Class 1, 2, or 3	Critical for energy efficiency and system performance.

Packaging & Delivery

Package Size:

10.00cm * 10.00cm * 300.00cm

Gross Weight:

5.000kg

Transport:

Container Shipping

Frequently Asked Questions

What types of HVAC components are available?

We offer a complete range of HVAC components including air grilles, diffusers, dampers, air filters, fans, and a full line of air ducts and fittings.

Do you offer custom-made or OEM products?

Yes, a significant part of our business is dedicated to OEM and ODM services. We can customize dimensions, materials (aluminum, galvanized steel, or stainless steel), and finishes.

What is the typical Material used for these ducts?

The ducts are primarily made from Galvanized Steel (GI) for standard use, Stainless Steel for corrosive environments, or Aluminum for specialized applications.

How do you ensure product quality?

We implement a rigorous Quality Management System with inspections at every stage, from raw material procurement to final assembly, ensuring durability and efficiency.

What are your main export markets?

We have extensive experience serving clients across Europe, North America, Australia, the Middle East, and Southeast Asia.

Can you provide technical support?

Our technical team is available to provide support for product selection and application, ensuring components meet your local standards and project specifications.
