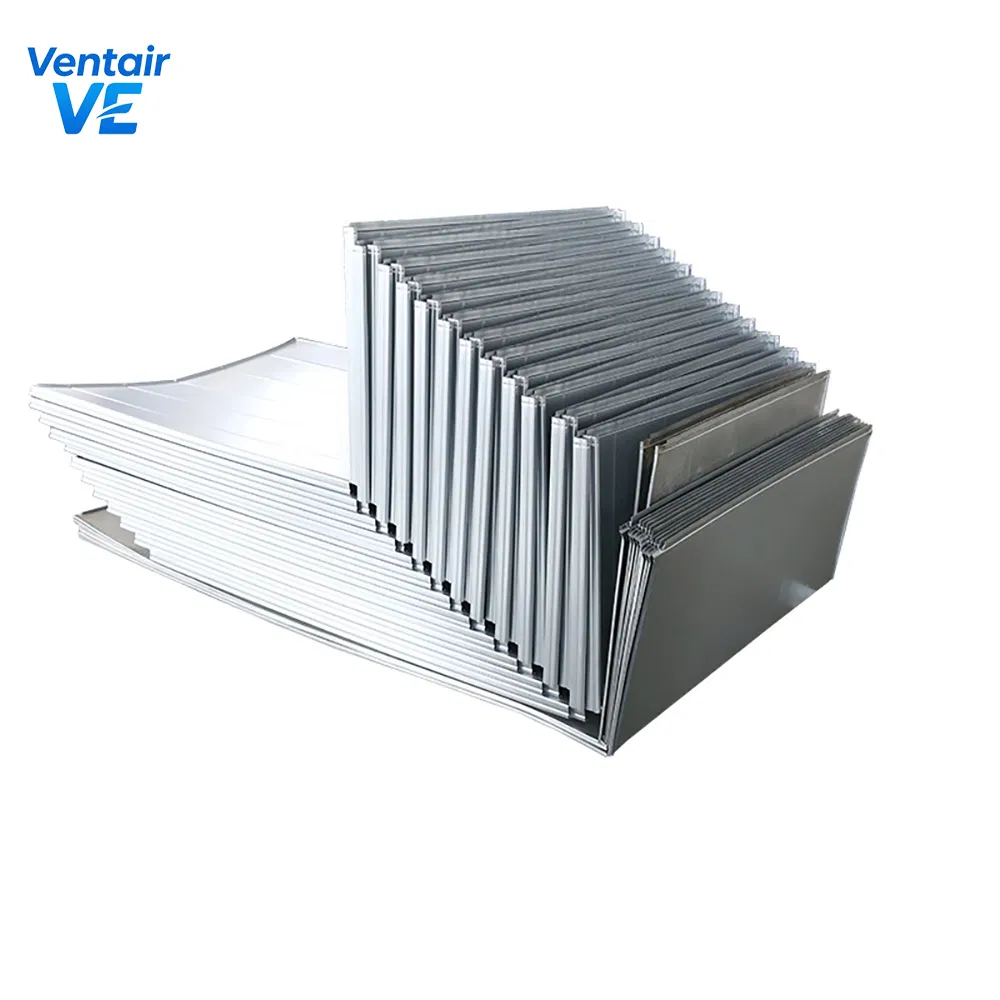

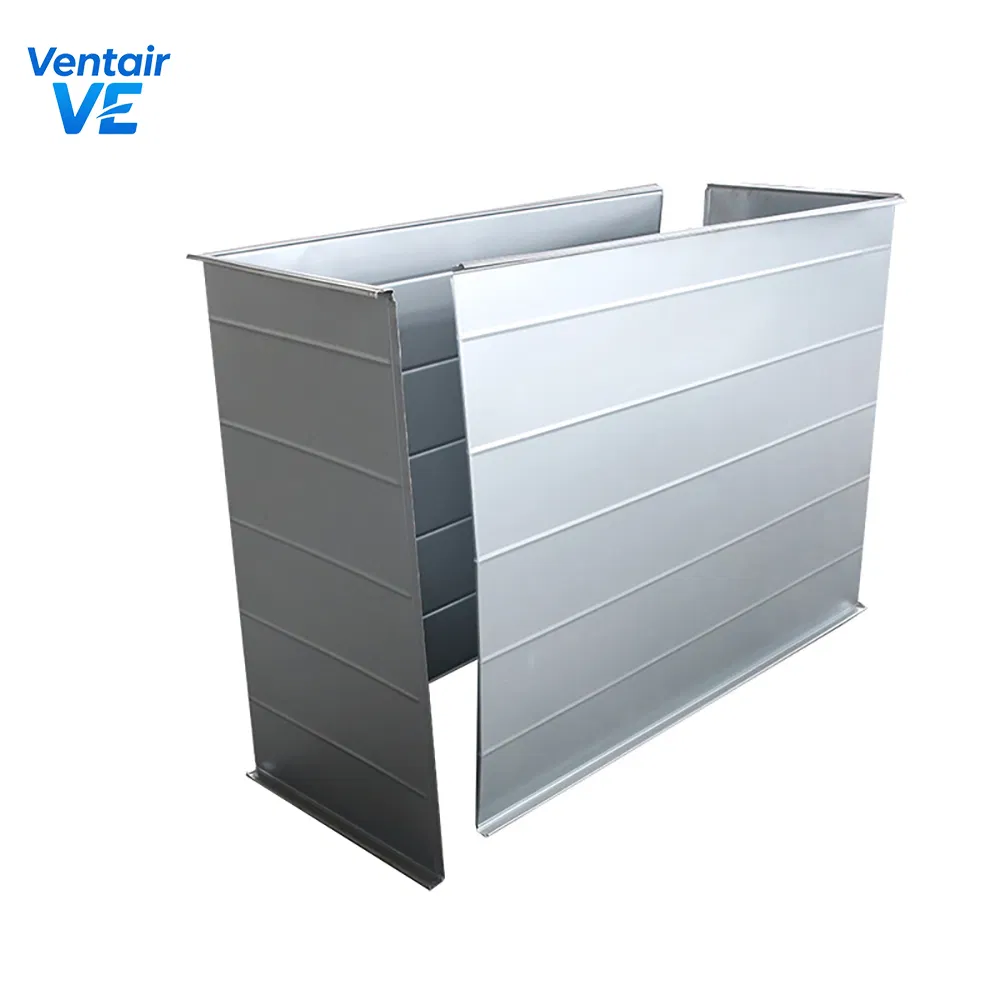

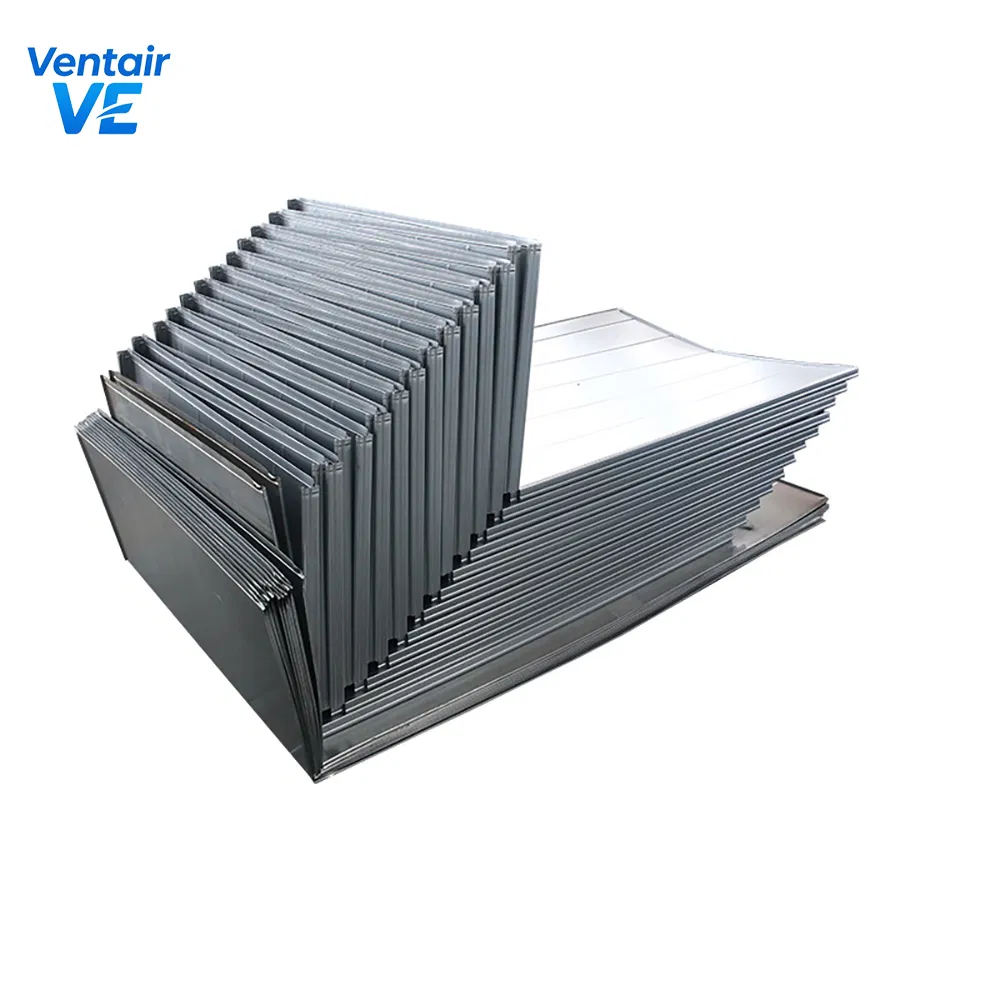

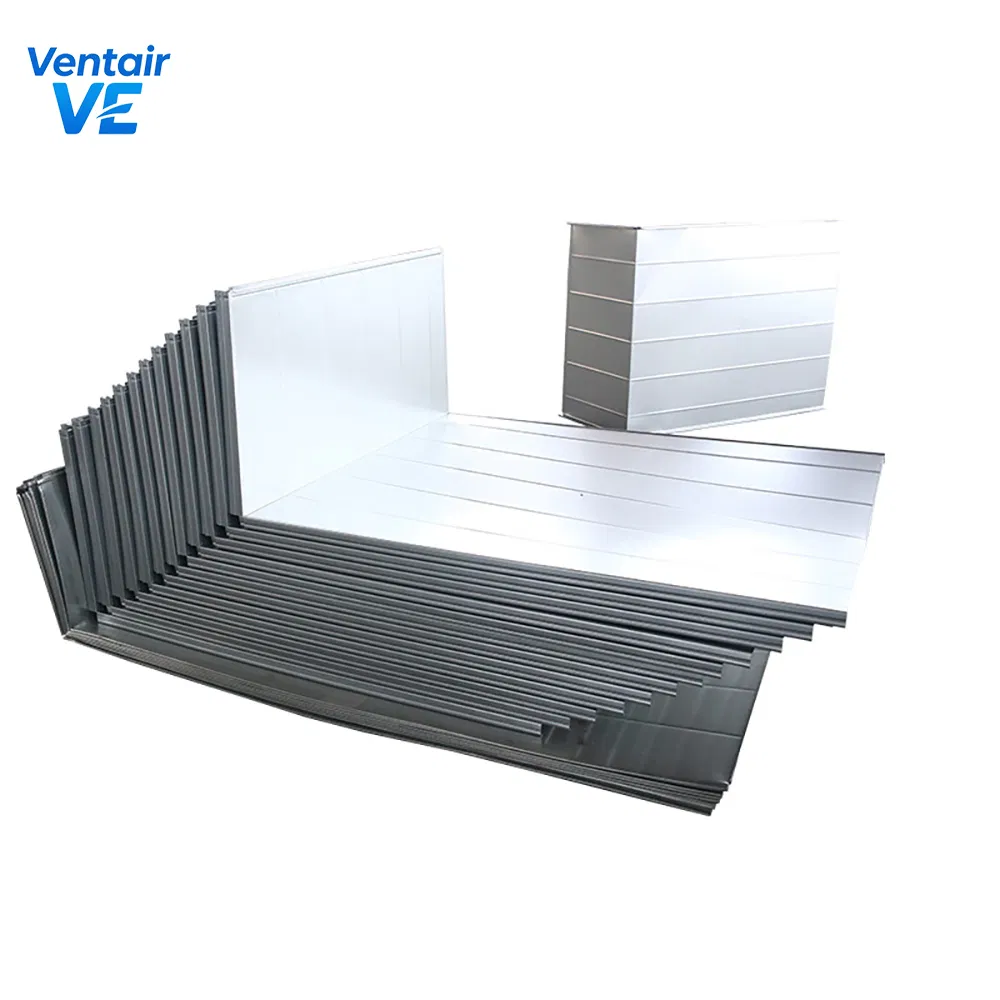

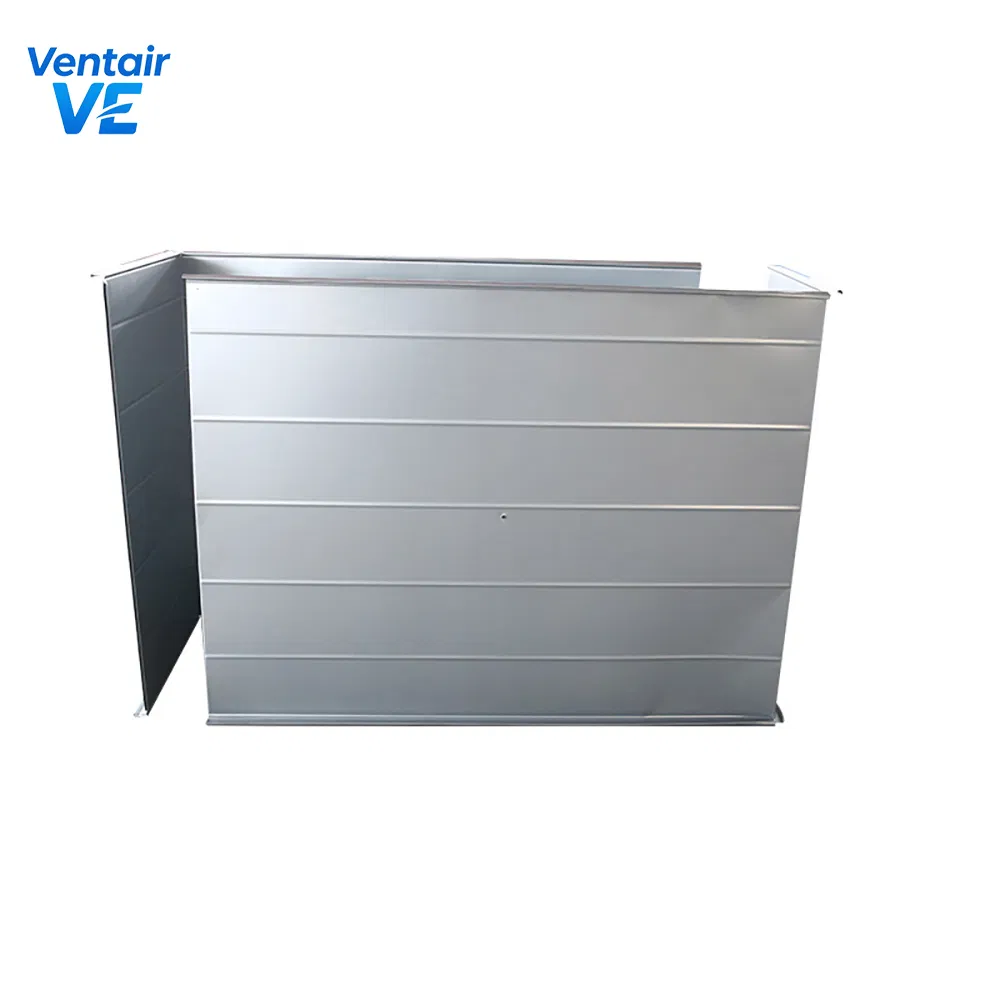

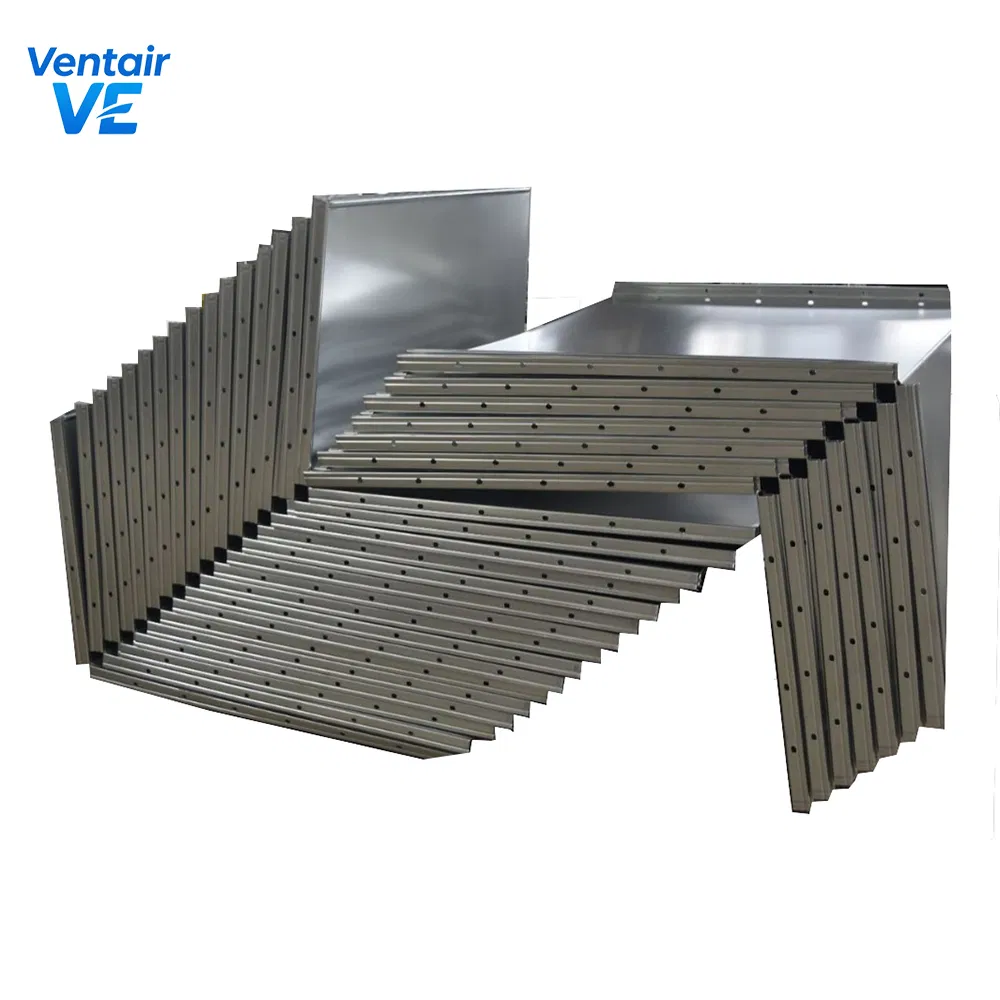

Galvanized Steel L Shaped Central Air Conditioning Ventilation Rectangular Air Duct

Basic Information

Model NO.

VA-RD11

Application

HVAC Ventilation Duct

Shape

Rectangle

Performance

Corrosion Resistance

Material Option

Stainless Steel

Thickness

0.5-1.5mm

Production

500,000 Pcs/Year

Size

Customized

Product Description

A metal rectangular duct is a fundamental component in Heating, Ventilation, and Air Conditioning (HVAC) systems, designed for the controlled conveyance of air in commercial, institutional, and industrial buildings. Its defining characteristic is its cross-sectional shape, which offers significant advantages in spatial planning and structural integration compared to round ducts.

Primary Function: To efficiently transport supply (conditioned) air, return air, or exhaust air throughout a building with minimal air leakage and pressure loss.

Core Characteristics

Material: Primarily fabricated from galvanized steel (GI) for corrosion resistance. Stainless steel or aluminum options available for specialized environments.
Fabrication: Manufactured from flat sheets joined using automated coil lines, Pittsburgh locks, and various flange systems.
Space Efficiency: Flat-sided profile allows installation flush against ceilings, maximizing plenum space.
Insulation: Can be externally wrapped or internally lined for thermal and acoustic management.

Feature / Aspect	Description & Specifications	Typical Application
Primary Material	Galvanized Steel (GI), Stainless Steel, Aluminum	GI is standard for general HVAC.
Standard Gauge	0.5mm to 1.5mm or thicker	Governed by SMACNA standards.
Connection Systems	TDF, Angle Iron Flange, S&D, Standing Drive	TDF is modern airtight standard.
Key Strength	High Rigidity	Medium to high-pressure systems.
Air Leakage Class	Class 1, 2, or 3 achieved with gasketed flanges	Critical for energy efficiency.
Primary Use Cases	Office buildings, hospitals, schools, retail	Dominant choice for space constraints.

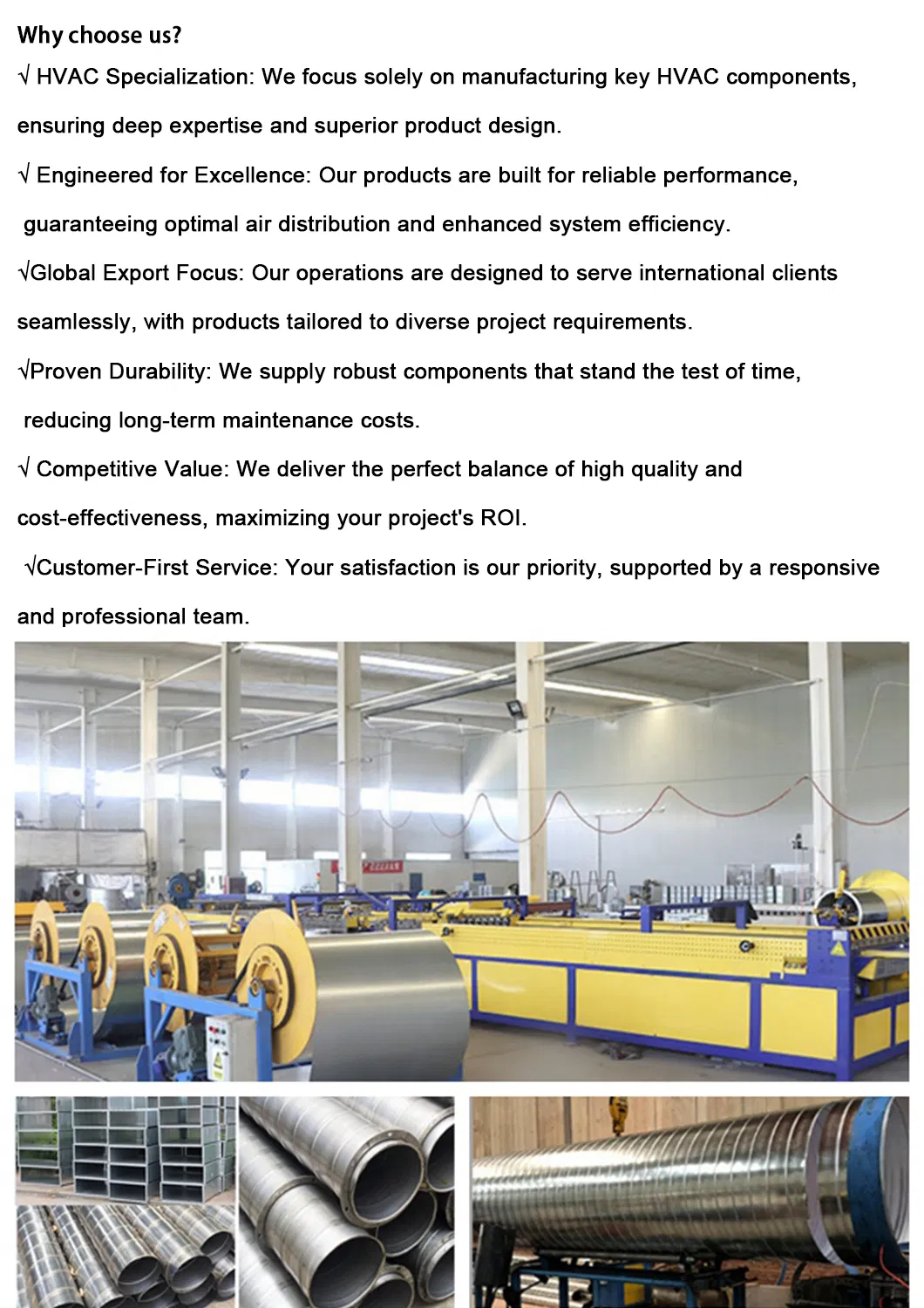

Manufacturing Capabilities

Our specialized manufacturing facility is dedicated to providing high-quality HVAC products for a wide range of commercial and residential applications. The core product portfolio includes air grilles, air diffusers, air dampers, air filters, air fans, as well as air ducts and fittings. Committed to precision engineering and reliable performance, we ensure optimal air distribution and system efficiency.

Packing & Delivery

Frequently Asked Questions

What types of HVAC components are specialized in?

We specialize in a complete range of HVAC components including air grilles, diffusers, dampers for airflow control, air filters for indoor quality, fans for air movement, and a full line of air ducts and fittings.

Do you offer custom-made or OEM products?

Yes, a significant part of the business is dedicated to OEM and ODM services. We can customize dimensions, materials (aluminum, galvanized steel, stainless steel), finishes, and performance criteria.

What is the minimum order quantity (MOQ)?

The MOQ varies by product. We strive to be flexible to accommodate both large projects and smaller trial orders. Please contact our team with your specific needs.

How is product quality and reliability ensured?

Quality is the foundation of our manufacturing. We implement a rigorous Quality Management System with inspections at every stage, from raw material procurement to final assembly and testing.

What are the main markets and export experience?

As an export-oriented entity, we have a strong global presence serving clients across Europe, North America, Australia, the Middle East, and Southeast Asia with reliable logistics.

Is technical support or product certification available?

Yes, our technical team provides support for product selection and application. International certifications can be provided upon request to ensure compliance with local standards.
